01 / Overview

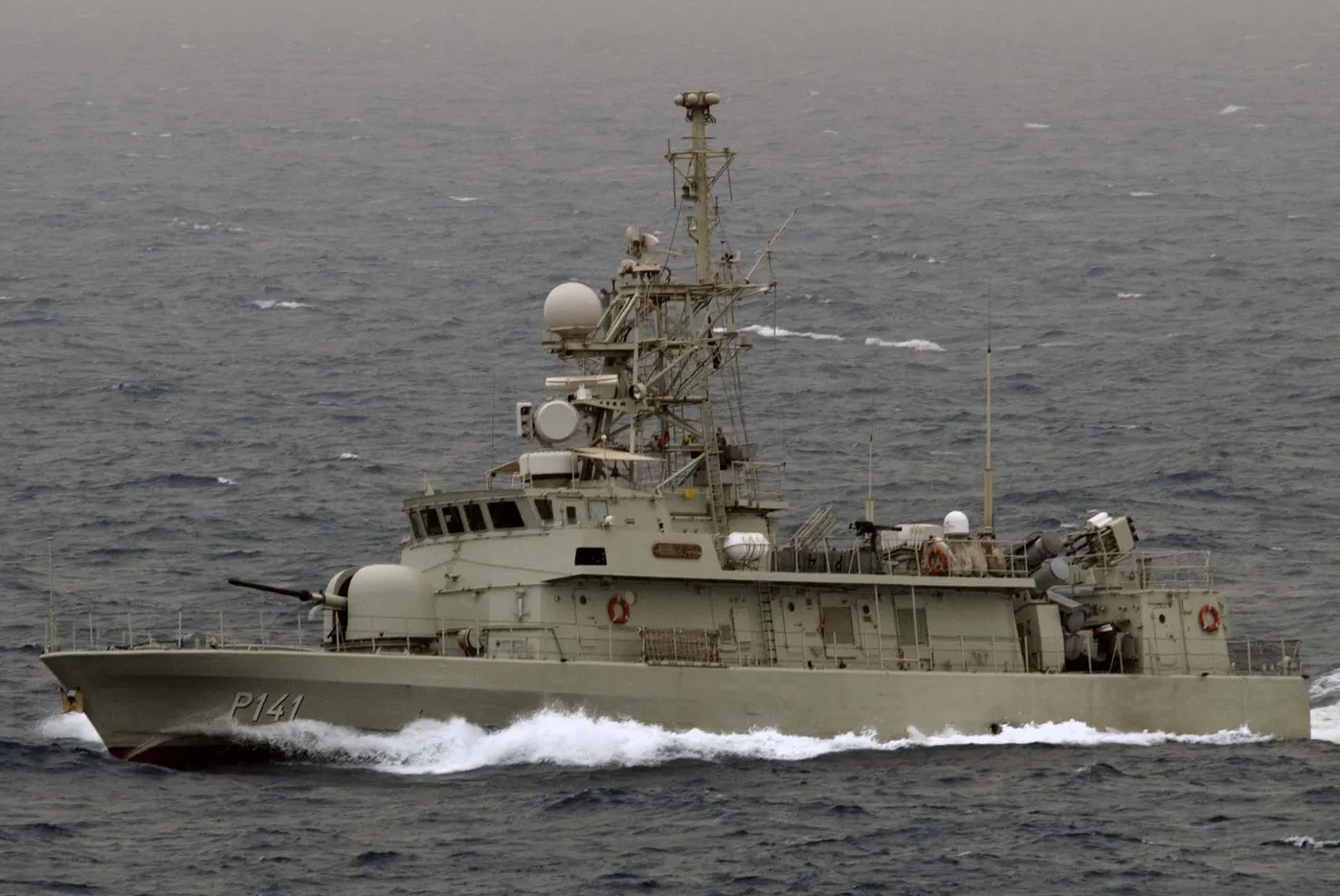

Mubarraz-class fast attack craft
Category
Country
Production
1986–1990
Quantity
2
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
PATROL BOATS & FAST ATTACK CRAFT · COLD WAR
11
PERFORMANCE/PRICE
70
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the patrol boats & fast attack craft category, regardless of era.
02 / Specs & Design
◎Identification6MOD.6
- Hull ClassificationFast attack craft
- Ship TypeFast attack craft
- Builder / ShipyardLürssen, Bremen
- Commissioned1990
- Ships in Class2
- In ServiceYes
◈Displacement3MOD.3
- Light Displacement210 t
- Standard Displacement210 t
- Full Load Displacement235 t
▣Dimensions4MOD.4
- Length (overall)44 m
- Length (waterline)41.5 m
- Beam7 m
- Draft2.2 m
◇Complement2MOD.2
- Total Complement40
- Officers5
◆Propulsion9MOD.9
- Propulsion Type2 MTU 20V 538 TB93 diesel engines
- Arrangement (CODAG/COGAG…)Twin diesel engines, two shafts
- Number of Engines2
- Shaft Power7,599 kW
- Shafts / Screws2
- Top Speed40 kn
- Cruise Speed38 kn
- Range500
- Nuclear-PoweredNo
▤Gun Armament3MOD.3
- Main GunOTO Melara 76 mm Super Rapid
- Main Gun Calibre76 mm
- Main Gun Count1
⬢Missile Armament5MOD.5
- Anti-Ship MissilesAérospatiale MM 40 Exocet
- Surface-to-Air MissilesMatra Sadral with Mistral
- Land-Attack Cruise MissilesNo
- Ballistic Missile DefenseNo
- ASW Rocket / MissileNo
▲Underwater Warfare3MOD.3
◎Aviation5MOD.5
- Embarked Helicopters0
- HangarNo
- Flight DeckNo
- Fixed-Wing Aircraft0
- UAV CapabilityNo
◈Sensors & Combat Systems7MOD.7
- Air-Search RadarEricsson Sea Giraffe 50HC
- Surface / Fire-Control RadarRacal Decca 1226
- Phased-Array RadarNo
- Combat SystemBofors Electronic 9LV 223
- Aegis / EquivalentNo
- Electronic WarfareYes
- Decoy LaunchersDagaie
▣Survivability5MOD.5
- CBRN CitadelNo
- DegaussingNo
- Hull MaterialAluminium
- Stealth ShapingNo
- Automated Damage ControlNo
◇Fleet Status8MOD.8
- Completed2
- Active2
- Under Construction0
- Planned0
- Cancelled0
- Lost0
- Retired0
- Preserved0
03 / History
SERVICE LIFESPANStill in Service
- 1986Production started
- 1990Production ended
40
years in service
4
years in production
2
units produced
1
countries operating
