01 / Overview

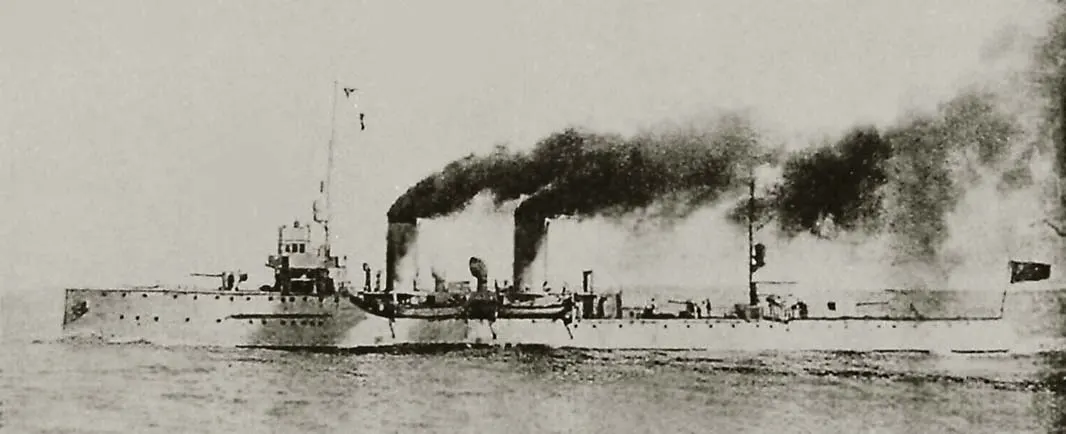

Jian'an-class torpedo gunboat
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
PATROL BOATS & FAST ATTACK CRAFT · PRE-WWI / INDUSTRIAL AGE
31
PERFORMANCE/PRICE
78
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the patrol boats & fast attack craft category, regardless of era.
02 / Specs & Design
◎Identification8MOD.8
- Hull Classificationarmoured torpedo gunboat
- Ship Typetorpedo gunboat
- Builder / ShipyardFuzhou Arsenal
- Laid Down1898
- Launched1898
- Commissioned1903
- Ships in Class2
- In ServiceYes
◈Displacement2MOD.2
- Standard Displacement871 t
- Full Load Displacement900 t
▣Dimensions3MOD.3
- Length (overall)79.2 m
- Beam8.2 m
- Draft3.35 m
◇Complement1MOD.1
- Total Complement140
◆Propulsion5MOD.5
- Propulsion TypeVertical triple expansion engines with Normand boilers
- Number of Engines2
- Shaft Power4,857 kW
- Shafts / Screws2
- Top Speed23 kn
▤Gun Armament4MOD.4
- Main Gun100 mm/45
- Main Gun Calibre100 mm
- Main Gun Count1
- Secondary Guns65 mm/50 (3) and 37 mm/29 (6)
⬢Underwater Warfare1MOD.1
- Torpedo Tubes2
▲Armour3MOD.3
- ArmourBelt 25 mm, Deck 25 mm
- Belt Armour25 mm
- Deck Armour25 mm
03 / History
SERVICE LIFESPANRetired
- 1899Production started
- 1903Production ended
127
years in service
4
years in production
2
units produced
0
countries operating
ⓘ 1 countries retired it.
05 / MASS Score
PATROL BOATS & FAST ATTACK CRAFT RANKING Patrol Boats & Fast Attack Craft · Pre-WWI / Industrial Age
MASS RANKINGSMASS ↗
236PATROL BOATS & FAST ATTACK CRAFT31PRE-WWI / INDUSTRIAL AGE · PATROL BOATS & FAST ATTACK CRAFT66PERFORMANCE/PRICE · PATROL BOATS & FAST ATTACK CRAFT
ⓘ Rankings are within thePatrol Boats & Fast Attack Craftcategory.
