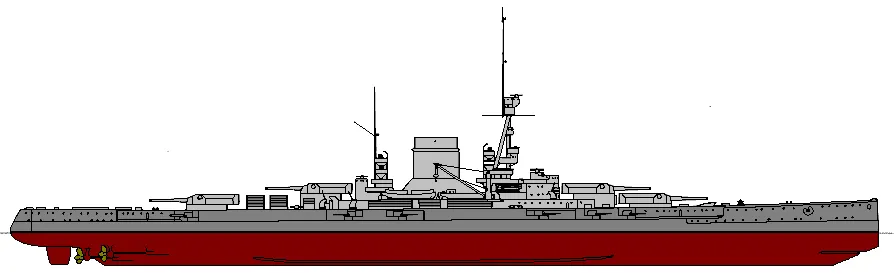

Ersatz Yorck-class battlecruiser
02 / Specs & Design
◎Identification4MOD.4
- Ship Typebattlecruiser
- Builder / ShipyardAG Vulcan Stettin, Germaniawerft, Blohm & Voss
- Ships in Class3
- In ServiceNo
◈Displacement2MOD.2
- Light Displacement33,500 t
- Full Load Displacement38,000 t
▣Dimensions4MOD.4
- Length (overall)227.8 m
- Length (waterline)218.5 m
- Beam30.4 m
- Draft9.3 m
◇Complement2MOD.2
- Total Complement1,227
- Officers47
◆Propulsion9MOD.9
- PropulsionSteam Turbine
- Arrangement (CODAG/COGAG…)4 geared steam turbines driving 4 screws, 24 coal-fired and 8 oil-fired boilers
- Number of Engines4
- Shaft Power90,000 kW
- Shafts / Screws4
- Top Speed27.3 kn
- Cruise Speed14 kn
- Range5,500
- Nuclear-PoweredNo
▤Gun Armament4MOD.4
- Main Gun8 × 38 cm SK L/45 guns in four twin turrets
- Main Gun Calibre380 mm
- Main Gun Count8
- Secondary Guns12 × 15 cm SK L/45, 8 × 8.8 cm SK L/45
⬢Missile Armament3MOD.3
▲Underwater Warfare4MOD.4
- Torpedo Tubes4
- ASW CapabilityNo
- Hull-Mounted SonarNo
- Towed Array SonarNo
◎Aviation3MOD.3
◈Sensors & Combat Systems3MOD.3
▣Survivability5MOD.5
- CBRN CitadelNo
- DegaussingNo
- Hull Materiallongitudinal steel frames with riveted outer plating
- Stealth ShapingNo
- Automated Damage ControlNo
◇Fleet Status5MOD.5
- Completed0
- Active0
- Under Construction0
- Planned3
- Cancelled3
◆Armour1MOD.1
- Armourbelt 100–300 mm, deck 30–80 mm, turrets 270 mm, secondary battery 150 mm
03 / History
SERVICE LIFESPANRetired
- 1915Production started
- 1917Entered service
- 1918Production ended
111
years in service
3
years in production
3
units produced
0
countries operating
ⓘ The producing country no longer actively operates it. 1 countries retired it.
