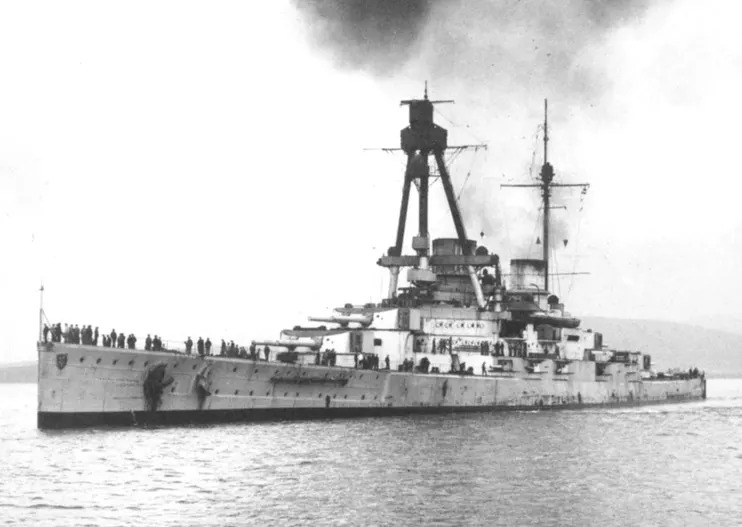

Derfflinger-class battlecruiser
02 / Specs & Design
◎Identification4MOD.4
- Ship TypeBattlecruiser
- Builder / ShipyardBlohm & Voss; Kaiserliche Werft Wilhelmshaven; Schichau-Werke
- Ships in Class3
- In ServiceYes
◈Displacement2MOD.2
- Light Displacement26,600 t
- Full Load Displacement31,200 t
▣Dimensions4MOD.4
- Length (overall)210.4 m
- Length (waterline)210 m
- Beam29 m
- Draft9.2 m
◇Complement3MOD.3
- Total Complement1,112
- Officers44
- Air Wing Personnel0
◆Propulsion7MOD.7
- PropulsionSteam Turbine
- Arrangement (CODAG/COGAG…)four-shaft steam turbine
- Shaft Power46,336 kW
- Shafts / Screws4
- Top Speed26.5 kn
- Range5,600
- Nuclear-PoweredNo
▤Gun Armament4MOD.4
- Main Gun8 × 30.5 cm SK L/50 guns
- Main Gun Calibre305 mm
- Main Gun Count8
- Secondary Guns12 × 15 cm SK L/45 guns; 12 × 8.8 cm guns
⬢Missile Armament3MOD.3
▲Underwater Warfare4MOD.4
- Torpedo Tubes4
- ASW CapabilityNo
- Hull-Mounted SonarNo
- Towed Array SonarNo
◎Aviation5MOD.5
- Embarked Helicopters0
- HangarNo
- Flight DeckNo
- Fixed-Wing Aircraft0
- UAV CapabilityNo
◈Sensors & Combat Systems3MOD.3
▣Survivability5MOD.5
- CBRN CitadelNo
- DegaussingNo
- Hull Materiallongitudinal steel frames with riveted plates
- Stealth ShapingNo
- Automated Damage ControlYes
◇Fleet Status6MOD.6
- Completed3
- Under Construction0
- Planned0
- Cancelled0
- Lost1
- Preserved0
◆Armour2MOD.2
- ArmourBelt 100–300 mm; Turrets 270 mm; Conning tower 300 mm
- Belt Armour100 mm
03 / History
SERVICE LIFESPANRetired
- 1913Production started
- 1914First deployment: World War I
- 1917Production ended
113
years in service
4
years in production
3
units produced
0
countries operating
ⓘ The producing country no longer actively operates it. 1 countries retired it.
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE2terms
Automated Damage Control is a shipboard system that detects, assesses, and mitigates combat damage on aircraft carriers using sensors and software to enhance response speed and reduce crew workload.
A mechanical device that converts steam pressure into rotational energy, used to drive shipboard generators or propulsion systems.
