Data Quality81%
01 / Overview

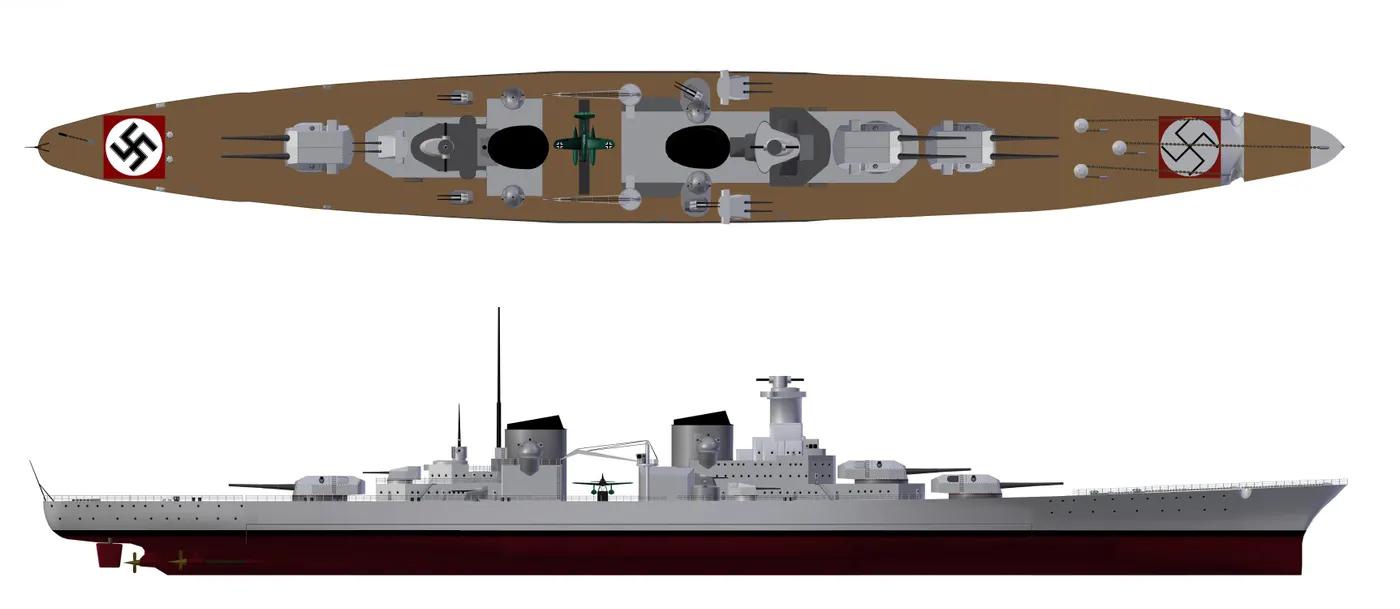

O-class battlecruiser
02 / Specs & Design
◎Identification4MOD.4
- Hull ClassificationBattlecruiser
- Ship TypeBattlecruiser
- Ships in Class3
- In ServiceNo
◈Displacement3MOD.3
- Light Displacement28,900 t
- Standard Displacement28,900 t
- Full Load Displacement35,400 t
▣Dimensions4MOD.4
- Length (overall)256 m
- Length (waterline)248.2 m
- Beam30 m
- Draft8.02 m
◇Complement3MOD.3
- Total Complement1,965
- Officers65
- Air Wing Personnel4
◆Propulsion9MOD.9
- PropulsionCODAG
- Arrangement (CODAG/COGAG…)8 diesel engines + 1 steam turbine
- Number of Engines9
- Shaft Power176,000 kW
- Shafts / Screws3
- Top Speed35 kn
- Cruise Speed19 kn
- Range14,000
- Nuclear-PoweredNo
▤Gun Armament4MOD.4
- Main Gun6 × 38 cm SK C/34 naval guns in three twin turrets
- Main Gun Calibre380 mm
- Main Gun Count6
- Secondary Guns6 × 15 cm TbtsK C/36 naval guns in three twin turrets; 8 × 10.5 cm FlaK 38 AA; 8 × 3.7 cm SK C/30 AA; 20 × 2 cm FlaK 30 AA
⬢Missile Armament2MOD.2
▲Underwater Warfare3MOD.3
- Torpedo Tubes6
- Hull-Mounted SonarNo
- Towed Array SonarNo
◎Aviation5MOD.5
- Embarked Helicopters0
- HangarYes
- Flight DeckNo
- Fixed-Wing Aircraft4
- UAV CapabilityNo
◈Sensors & Combat Systems2MOD.2
▣Survivability4MOD.4
- CBRN CitadelYes
- Hull Materialwelded steel
- Stealth ShapingNo
- Automated Damage ControlYes
◇Fleet Status8MOD.8
- Completed0
- Active0
- Under Construction0
- Planned3
- Cancelled3
- Lost0
- Retired0
- Preserved0
◆Armour3MOD.3
- ArmourBelt: 190 mm; Deck: 80 mm; Turrets: 210 mm; Torpedo bulkhead: 45 mm
- Belt Armour190 mm
- Deck Armour80 mm
03 / History
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE4terms
Automated Damage Control is a shipboard system that detects, assesses, and mitigates combat damage on aircraft carriers using sensors and software to enhance response speed and reduce crew workload.
A defensive system on fleet aircraft carriers designed to detect, protect against, and mitigate chemical, biological, radiological, and nuclear threats.
Combined diesel-electric and gas propulsion system integrating diesel engines for cruising and gas turbines for high-speed operation.
