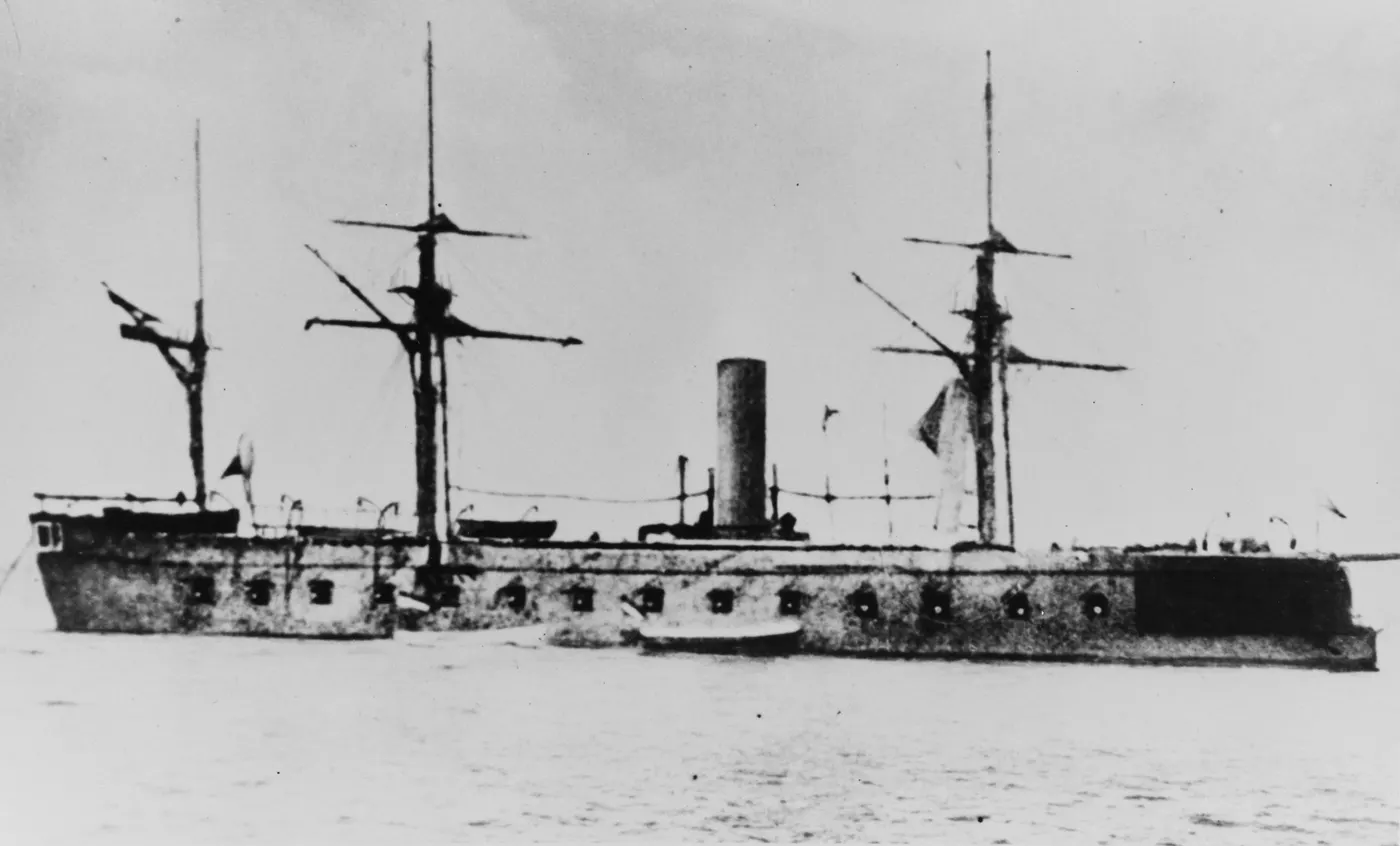

Kaiser Max-class ironclad (1862)
Category
Prime contractor
Production
1862–1863
Quantity
3
Operators
02 / Specs & Design
◎Identification6MOD.6
- Ship Typebroadside ironclad
- Laid Down1861
- Launched1862
- Commissioned1863
- Ships in Class3
- In ServiceYes
◈Displacement3MOD.3
- Light Displacement3,588 t
- Standard Displacement3,588 t
- Full Load Displacement3,588 t
▣Dimensions4MOD.4
- Length (overall)70.78 m
- Length (waterline)70.78 m
- Beam10 m
- Draft6.32 m
◇Complement1MOD.1
- Total Complement386
◆Propulsion9MOD.9
- PropulsionSteam Reciprocating
- Arrangement (CODAG/COGAG…)single-expansion steam engine with single screw propeller
- Number of Engines1
- Shaft Power1,436 kW
- Shafts / Screws1
- Top Speed11.4 kn
- Cruise Speed10 kn
- Range1,200
- Nuclear-PoweredNo
▤Gun Armament4MOD.4
- Main Gun16 × 48-pounder muzzle-loading guns (Kaiser Max and Prinz Eugen); 14 × 48-pounder muzzle-loading guns (Don Juan d'Austria)
- Main Gun Calibre203 mm
- Main Gun Count16
- Secondary Guns15 × 24-pounder rifled muzzle-loading guns; 1 × 12-pounder gun; 1 × 6-pounder gun
⬢Aviation3MOD.3
▲Sensors & Combat Systems2MOD.2
◎Survivability2MOD.2
- Hull Materialwood
- Stealth ShapingNo
◈Fleet Status8MOD.8
- Completed3
- Active0
- Under Construction0
- Planned3
- Cancelled0
- Lost0
- Retired3
- Preserved0
▣Armour2MOD.2
- ArmourBelt: 110 mm
- Belt Armour110 mm
03 / History
SERVICE LIFESPANRetired
- 1862Production started
- 1863Production ended
164
years in service
1
years in production
3
units produced
0
countries operating
ⓘ 1 countries retired it.
