Data Quality81%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the multiple launch rocket systems (mlrs) category.
01 / Overview

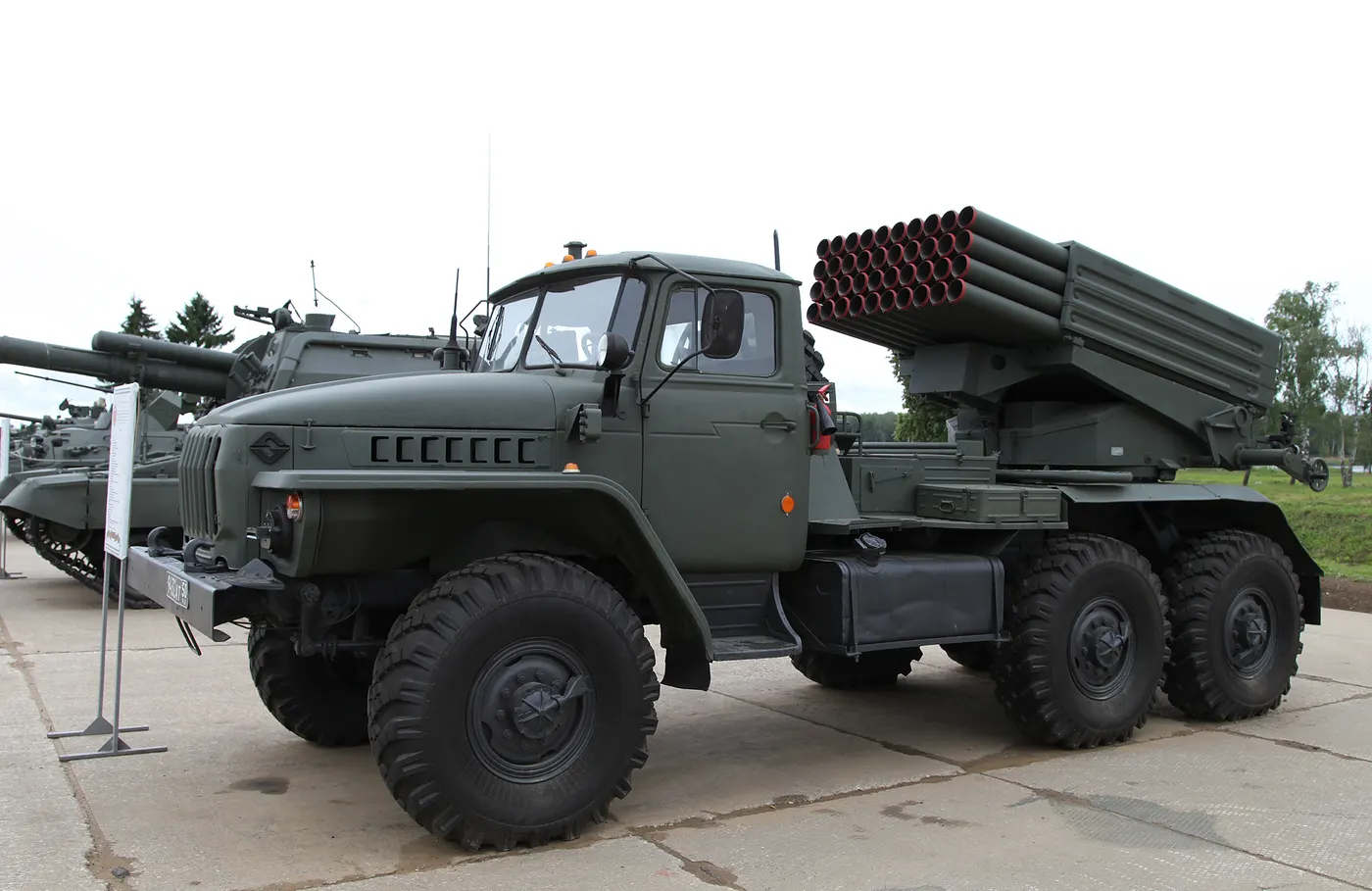

Tornado-G
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
MULTIPLE LAUNCH ROCKET SYSTEMS (MLRS)
—
PERFORMANCE/PRICE
78
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the multiple launch rocket systems (mlrs) category, regardless of era.
02 / Specs & Design
◎General4MOD.4
- Service Entry Year2014
- Crew3
- Carriage TypeWheeled / Towed
- In ServiceYes
◈Ordnance5MOD.5
- Calibre122 mm
- Ordnance Type122 mm rockets (HE, cluster, guided)
- Recoil SystemNone / Rigid
- Muzzle BrakeNo
- Bore EvacuatorNo
▣Performance8MOD.8
- Minimum Range5 km
- Maximum Range (standard)20 km
- Maximum Range (rocket-assisted)30 km
- Maximum Range (guided)40 km
- Muzzle Velocity690 m/s
- Rate of Fire (sustained)4
- Elevation-2.5° to +55°
- Traverse360°
◇Ammunition9MOD.9
- Projectile Weight66 kg
- Ammunition Types9M21, 9M22, 9M28, 9M51, 9M52, 9M53, 9M53F, 9M53K, 9M53S, 9M53T
- Charge Zones4
- HE RoundYes
- Smoke RoundNo
- Illumination RoundNo
- Cluster / DPICMYes
- Precision-Guided RoundYes
- MRSI CapableNo
◆Fire Control5MOD.5
▤Mobility9MOD.9
- Self-PropelledNo
- Prime MoverUral-4320 6x6 truck
- Emplacement Time3
- Displacement Time2
- Shoot-and-ScootNo
- Road Speed (if SP)90 km/h
- Range (if SP)600 km
- AutoloaderNo
- Protected Crew CabNo
⬢Ammunition Handling3MOD.3
- Ready Rounds40
- Total Rounds Carried80
- Resupply VehicleUral-3255 or similar logistics truck
▲Dimensions3MOD.3
- Length7.2 m
- Width2.4 m
- Height3.2 m
◎Production1MOD.1
- Production Start2,014 year
◈Self-Propelled Chassis6MOD.6
- Engine Power500 hp
- Transmissionmanual, 5-speed
- Suspensionleaf spring
- Hull Armournone
- Secondary Armament7.62 mm PKT machine gun (optional)
- NBC ProtectionNo
03 / History
04 / Variants
▚ WEAPON FAMILY
06 / MASS Score
MULTIPLE LAUNCH ROCKET SYSTEMS (MLRS) RANKING Multiple Launch Rocket Systems (MLRS)
MASS RANKINGSMASS ↗
41MULTIPLE LAUNCH ROCKET SYSTEMS (MLRS)439RUSSIA · ALL WEAPONS54PERFORMANCE/PRICE · MULTIPLE LAUNCH ROCKET SYSTEMS (MLRS)
ⓘ Rankings are within theMultiple Launch Rocket Systems (MLRS)category.
📖 TERMS ON THIS PAGE9terms
Automated laying is a fire‑control capability that uses sensors and a computer to automatically set a towed artillery or mortar’s elevation and azimuth to the calculated firing solution.
Cluster/DPICM refers to artillery ammunition that disperses submunitions for anti-personnel and anti-vehicle effects.
A digital fire-control system employs computational algorithms to calculate and adjust artillery fire parameters, enhancing accuracy and efficiency in towed systems.
Using GPS data to guide a projectile or system to its target, enhancing accuracy.
High Explosive (HE) round: an artillery or mortar projectile containing explosive filler designed to inflict damage through blast and fragmentation effects.
Inertial navigation is a self-contained system that determines a vehicle’s position, orientation, and velocity by integrating data from accelerometers and gyroscopes, without external signals.
Artillery or mortar munition equipped with guidance systems to alter its trajectory after firing for increased accuracy.
Artillery classification distinguishing self-propelled wheeled vehicles from weapons towed by external means.
These terms are listed automatically because they appear on this page.full encyclopedia →
