Data Quality88%
01 / Overview

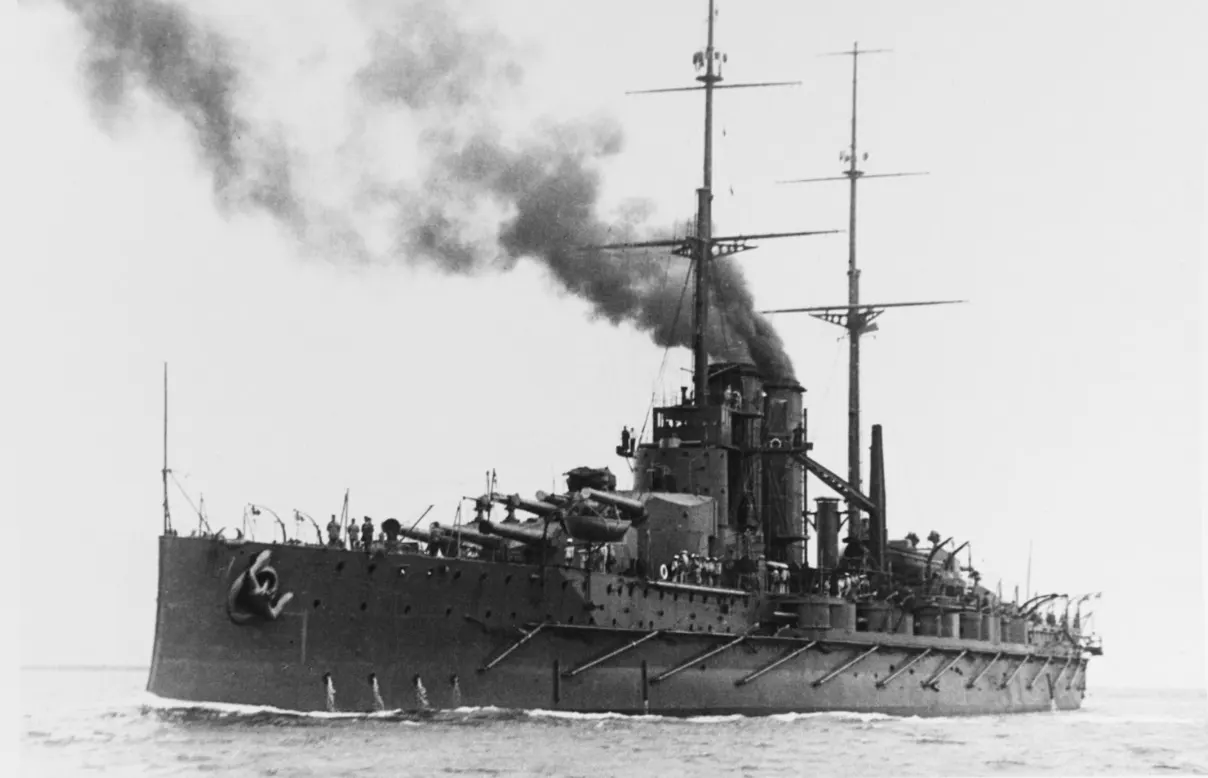

Tegetthoff-class battleship
Category
Country
Prime contractor
Production
1912–1914
Quantity
4
Operators
02 / Specs & Design
◎Identification2MOD.2
- Ship TypeDreadnought battleship
- Ships in Class4
◈Displacement2MOD.2
- Light Displacement20,000 t
- Full Load Displacement21,689 t
▣Dimensions3MOD.3
- Length (overall)152 m
- Beam27.9 m
- Draft8.7 m
◇Complement1MOD.1
- Total Complement1,087
◆Propulsion6MOD.6
- PropulsionSteam Turbine
- Number of Engines4
- Shaft Power20,000 kW
- Shafts / Screws4
- Top Speed20 kn
- Range4,200
▤Gun Armament4MOD.4
- Main Gun4 × triple 30.5 cm (12 guns)
- Main Gun Calibre305 mm
- Main Gun Count12
- Secondary Guns12 × single 15 cm; 18 × single 7 cm; 3 × single 7 cm AA
⬢Underwater Warfare1MOD.1
- Torpedo Tubes4
▲Armour1MOD.1
- ArmourBelt 150‑280 mm; Turret 60‑280 mm; Deck 30‑48 mm; Casemate 180 mm
03 / History
SERVICE LIFESPANRetired
- 1912Production started
- 1914First deployment: World War I
114
years in service
2
years in production
4
units produced
0
countries operating
ⓘ 3 countries retired it.
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE1terms
A mechanical device that converts steam pressure into rotational energy, used to drive shipboard generators or propulsion systems.
