01 / Overview

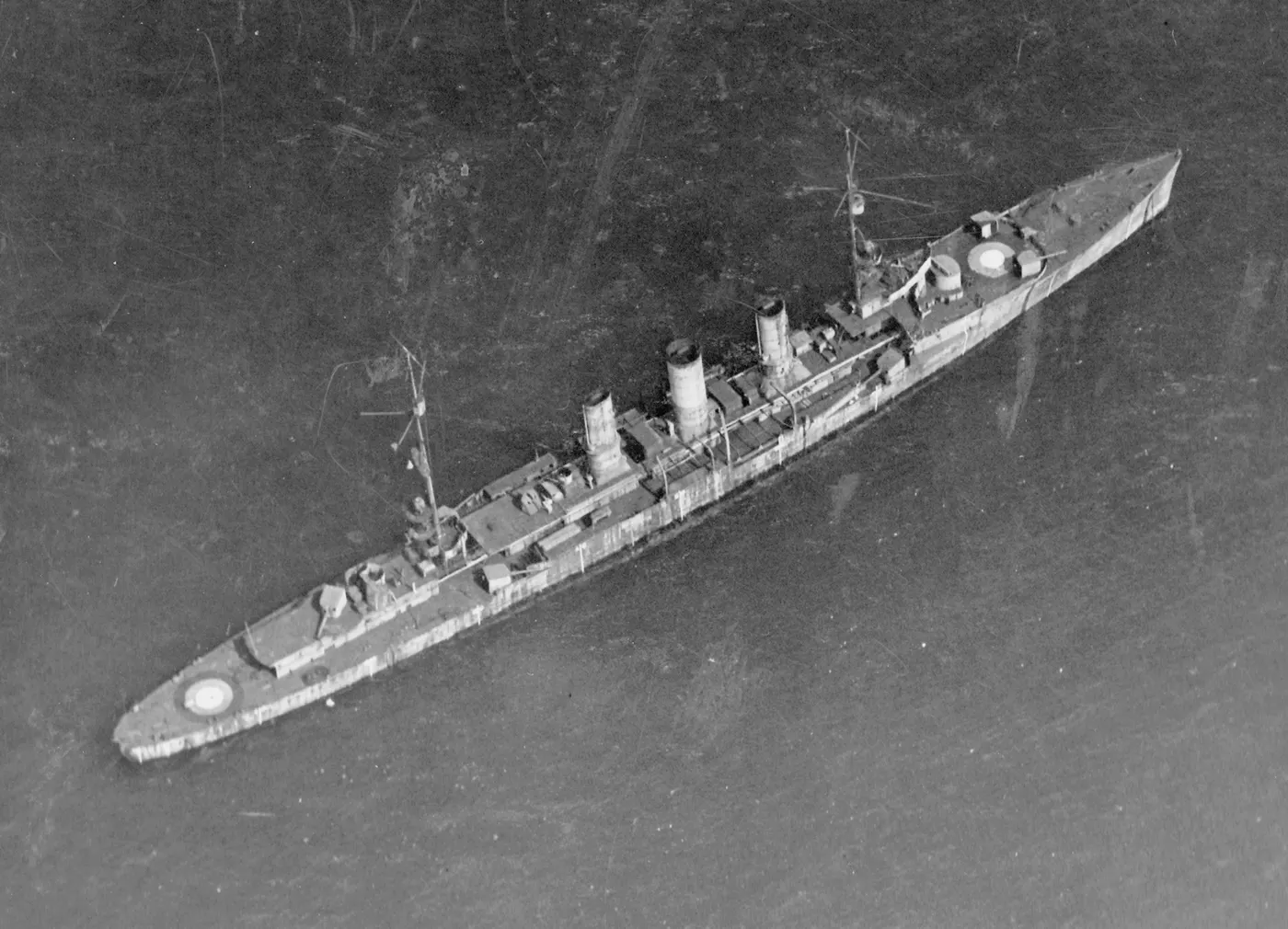

Wiesbaden-class cruiser
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
CRUISERS · WORLD WAR I
4
PERFORMANCE/PRICE
76
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the cruisers category, regardless of era.
02 / Specs & Design
◎Identification8MOD.8
- Hull ClassificationLight cruiser
- Ship TypeLight cruiser
- Builder / ShipyardAG Vulcan Stettin and Kaiserliche Werft Kiel
- Laid Down1913
- Launched1915
- Commissioned1915
- Ships in Class2
- In ServiceYes
◈Displacement2MOD.2
- Light Displacement5,180 t
- Full Load Displacement6,601 t
▣Dimensions4MOD.4
- Length (overall)145.3 m
- Length (waterline)141.7 m
- Beam13.9 m
- Draft5.76 m
◇Complement3MOD.3
- Total Complement474
- Officers17
- Air Wing Personnel0
◆Propulsion9MOD.9
- PropulsionSteam Turbine
- Arrangement (CODAG/COGAG…)2 steam turbines, 2 screws, 12 water-tube boilers (10 coal-fired, 2 oil-fired)
- Number of Engines12
- Shaft Power23,100 kW
- Shafts / Screws2
- Top Speed27.5 kn
- Cruise Speed12 kn
- Range4,800
- Nuclear-PoweredNo
▤Gun Armament4MOD.4
- Main Gun8 × 15 cm SK L/45 in single pedestal mounts
- Main Gun Calibre150 mm
- Main Gun Count8
- Secondary Guns2 × 8.8 cm SK L/45 anti-aircraft guns
⬢Missile Armament4MOD.4
▲Underwater Warfare4MOD.4
- Torpedo Tubes4
- ASW CapabilityYes
- Hull-Mounted SonarNo
- Towed Array SonarNo
◎Aviation5MOD.5
- Embarked Helicopters0
- HangarNo
- Flight DeckNo
- Fixed-Wing Aircraft0
- UAV CapabilityNo
◈Sensors & Combat Systems3MOD.3
▣Survivability5MOD.5
- CBRN CitadelNo
- DegaussingNo
- Hull MaterialSteel with longitudinal frames and double bottom
- Stealth ShapingNo
- Automated Damage ControlYes
◇Fleet Status8MOD.8
- Completed2
- Active0
- Under Construction0
- Planned2
- Cancelled0
- Lost2
- Retired2
- Preserved0
◆Armour3MOD.3
- ArmourBelt: 60 mm; Deck: 60 mm; Conning tower: 100 mm; Gun shields: 50 mm
- Belt Armour60 mm
- Deck Armour60 mm
03 / History
SERVICE LIFESPANRetired
- 1914First deployment: World War I
- 1915Production started
111
years in service
0
years in production
2
units produced
0
countries operating
ⓘ 1 countries retired it.
05 / MASS Score
CRUISERS RANKING Cruisers · World War I
MASS RANKINGSMASS ↗
ⓘ Rankings are within theCruiserscategory.
📖 TERMS ON THIS PAGE3terms
Anti-Submarine Warfare. Capability to detect, track, and engage submarines.
Automated Damage Control is a shipboard system that detects, assesses, and mitigates combat damage on aircraft carriers using sensors and software to enhance response speed and reduce crew workload.
A mechanical device that converts steam pressure into rotational energy, used to drive shipboard generators or propulsion systems.
These terms are listed automatically because they appear on this page.full encyclopedia →
📚 Sources
