Data Quality82%
01 / Overview

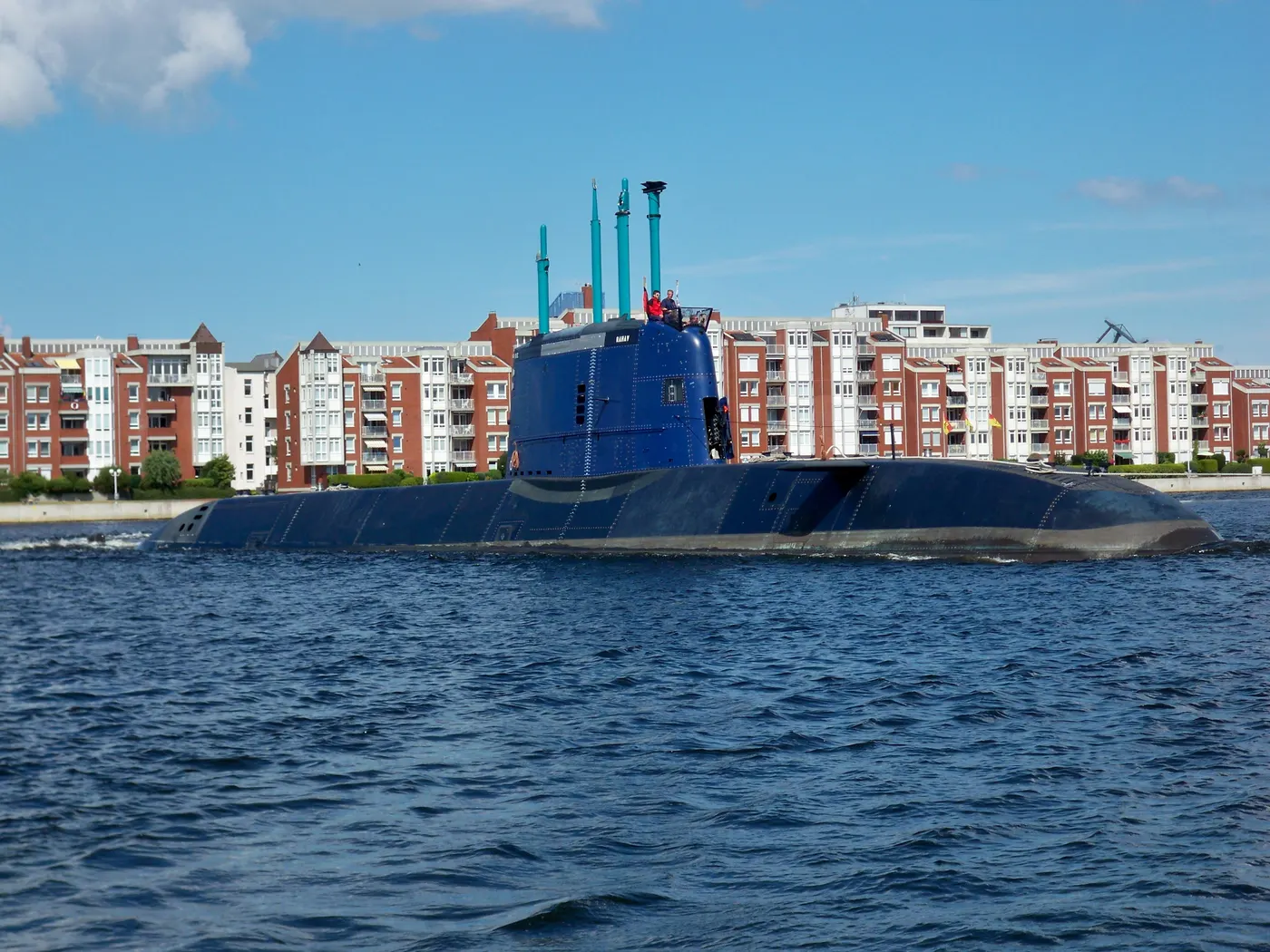

Dolphin-class submarine
02 / Specs & Design
◎Identification7MOD.7
- Hull ClassificationSSK
- Submarine Typeattack submarine
- Builder / ShipyardHowaldtswerke-Deutsche Werft
- Laid Down1990
- Commissioned1999
- Boats in Class6
- In ServiceYes
◈Displacement5MOD.5
- Surfaced Displacement1,640 t
- Submerged Displacement1,900 t
- Length57.3 m
- Beam6.8 m
- Draft6.2 m
▣Propulsion7MOD.7
- PropulsionDiesel-Electric
- Nuclear-PoweredNo
- Air-Independent Propulsion (AIP)Yes
- Shaft Power3,164 kW
- Propulsor Typescrew propeller
- Top Speed (surfaced)20 kn
- Top Speed (submerged)25 kn
◇Diving & Endurance5MOD.5
- Test Depth350 m
- Maximum Operating Depth350 m
- Submerged Endurance30 day
- Patrol Duration30 day
- Complement (crew)45
◆Armament8MOD.8
- Torpedo Tubes10
- Torpedo Tube Diameter533 mm
- VLS Cells0
- Cruise MissilesYes
- Ballistic Missiles (SLBM)No
- SLBM Count0
- Anti-Ship MissilesYes
- Mine-Laying CapableYes
▤Sensors & Combat Systems5MOD.5
- Bow SonarSTN Atlas
- Flank Array SonarYes
- Towed Array SonarYes
- ESM / ELINT SuiteYes
- Combat SystemSTN Atlas ISUS 90-55
⬢Stealth3MOD.3
▲Production & Cost2MOD.2
- First of Class1999
- Operators1
◎Fleet Status8MOD.8
- Completed6
- Active5
- Under Construction0
- Planned6
- Cancelled1
- Lost0
- Retired0
- Preserved0
03 / History
SERVICE LIFESPANStill in Service
- 1990Sale: Israel (3 units)
- 1998Production started
28
years in service
6
units produced
1
countries operating
04 / Operators
Operator Countries1country
Dolphin-class submarineSALES1records
| Year | Buyer | Quantity | Amount | Present Value (2025) |
|---|---|---|---|---|
| 1990 | 3 | — | — |
ⓘ "Present Value" is an estimated amount adjusted for inflation.
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE10terms
Submarine propulsion system enabling underwater operation without atmospheric oxygen, typically using stored oxidizer or closed-cycle engines.
Anechoic coating: A type of sonar-absorbing material applied to submarines to reduce their acoustic signature. It consists of rubber or other materials with properties that minimize sound reflection.
Anti-ship missiles are guided missiles designed to engage and destroy naval vessels. They are typically used by aircraft, ships, or submarines to attack enemy ships.
Cruise missiles are self-propelled, guided weapons launched from platforms like attack submarines (SSNs) to deliver warheads over long distances with precision.
Propulsion system combining diesel engines to generate electricity, which powers electric motors driving the vessel's propellers.
Electronic Support Measures/ELectronic INTelligence suite: a sensor system on submarines that detects, identifies, and locates radar and communication emissions for passive threat assessment and tactical advantage.
Sonar system mounted on submarine's flanks to detect targets.
Laying explosive mines underwater from a submarine.
A system of hydrophones towed behind a vessel to detect submarines and torpedoes, minimizing interference from the ship's self-noise.
These terms are listed automatically because they appear on this page.full encyclopedia →
