Data Quality84%
01 / Overview

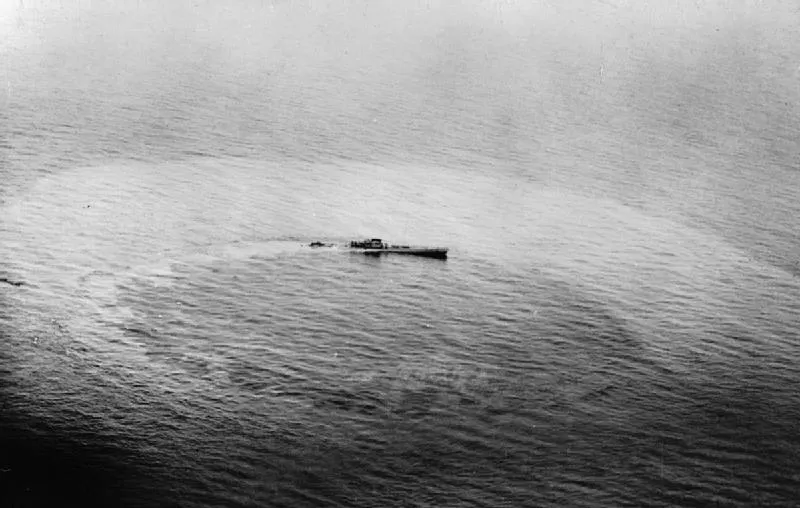

Type XIV submarine
Category
Country
Prime contractor
Production
1941–1943
Quantity
10
Operators
02 / Specs & Design
◎Identification7MOD.7
- Hull ClassificationType XIV
- Submarine TypeSubmarine tanker
- Builder / ShipyardDeutsche Werke, Germaniawerft
- Laid Down1940
- Commissioned1941
- Boats in Class10
- In ServiceYes
◈Displacement5MOD.5
- Surfaced Displacement1,688 t
- Submerged Displacement1,932 t
- Length67.1 m
- Beam9.35 m
- Draft6.51 m
▣Propulsion7MOD.7
- PropulsionDiesel-Electric
- Nuclear-PoweredNo
- Air-Independent Propulsion (AIP)No
- Shaft Power3,200 kW
- Propulsor Typepropeller
- Top Speed (surfaced)14.9 kn
- Top Speed (submerged)6.2 kn
◇Diving & Endurance3MOD.3
- Test Depth240 m
- Maximum Operating Depth240 m
- Complement (crew)53
◆Armament6MOD.6
- Torpedo Tubes0
- Cruise MissilesNo
- Ballistic Missiles (SLBM)No
- SLBM Count0
- Anti-Ship MissilesNo
- Mine-Laying CapableNo
▤Sensors & Combat Systems4MOD.4
- Flank Array SonarNo
- Towed Array SonarNo
- ESM / ELINT SuiteNo
- Combat System2 × 3.7 cm SK C/30 AA guns, 1 × 2 cm FlaK 30 AA gun
⬢Stealth3MOD.3
▲Production & Cost2MOD.2
- First of Class1941
- Operators1
◎Fleet Status8MOD.8
- Completed10
- Active0
- Under Construction0
- Planned24
- Cancelled14
- Lost10
- Retired10
- Preserved0
◈Armour1MOD.1
- Armour21.5 mm pressure hull
03 / History
SERVICE LIFESPANStill in Service
- 1941Production started
- 1943Production ended
85
years in service
2
years in production
10
units produced
1
countries operating
ⓘ The producing country still actively operates it.
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE1terms
Propulsion system combining diesel engines to generate electricity, which powers electric motors driving the vessel's propellers.
