Data Quality82%
01 / Overview

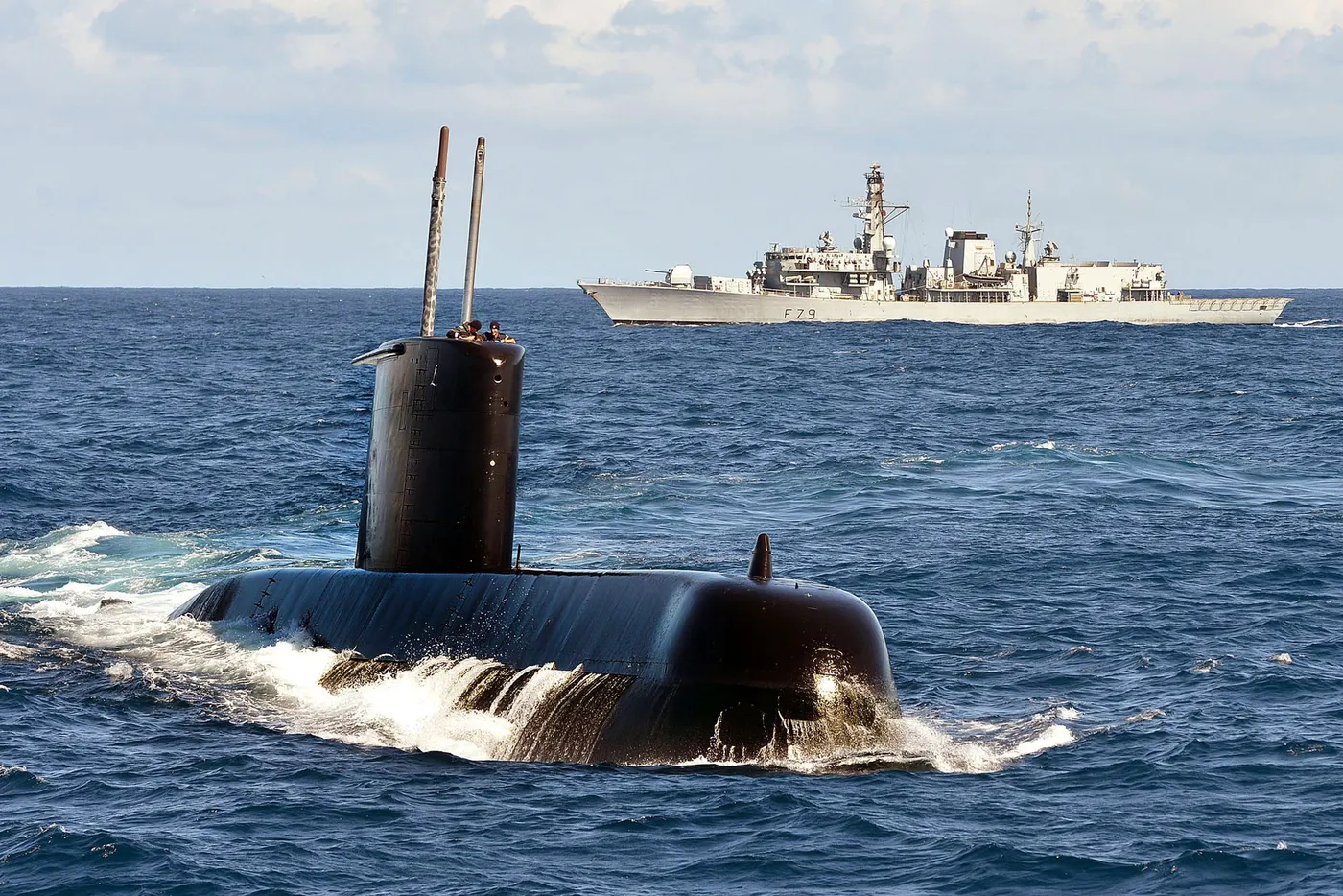

Heroine-class submarine
Category
Country
Prime contractor
Production
2001–2007
Quantity
3
Operators
02 / Specs & Design
◎Identification6MOD.6
- Submarine Typediesel-electric attack submarine
- Builder / ShipyardHowaldtswerke-Deutsche Werft (HDW) and Thyssen Nordseewerke
- Laid Down2001
- Commissioned2005
- Boats in Class3
- In ServiceYes
◈Displacement5MOD.5
- Surfaced Displacement1,450 t
- Submerged Displacement1,454 t
- Length62 m
- Beam7.6 m
- Draft5.8 m
▣Propulsion3MOD.3
- PropulsionDiesel-Electric
- Top Speed (surfaced)10 kn
- Top Speed (submerged)22 kn
◇Diving & Endurance2MOD.2
- Test Depth500 m
- Complement (crew)30
◆Armament2MOD.2
- Torpedo Tubes8
- Torpedo Tube Diameter533 mm
▤Sensors & Combat Systems6MOD.6
- Bow SonarAtlas Elektronik CSU-90
- Flank Array SonarYes
- Towed Array SonarNo
- Surface-Search RadarSurface search I-band
- ESM / ELINT SuiteYes
- Combat SystemAtlas Elektronik ISUS 90-45 integrated combat information system
⬢Production & Cost2MOD.2
- First of Class2005
- Operators1
▲Fleet Status2MOD.2
- Completed3
- Active3
03 / History
SERVICE LIFESPANStill in Service
- 2001Production started
- 2007Production ended
25
years in service
6
years in production
3
units produced
1
countries operating
05 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE3terms
Propulsion system combining diesel engines to generate electricity, which powers electric motors driving the vessel's propellers.
Electronic Support Measures/ELectronic INTelligence suite: a sensor system on submarines that detects, identifies, and locates radar and communication emissions for passive threat assessment and tactical advantage.
Sonar system mounted on submarine's flanks to detect targets.
