01 / Overview

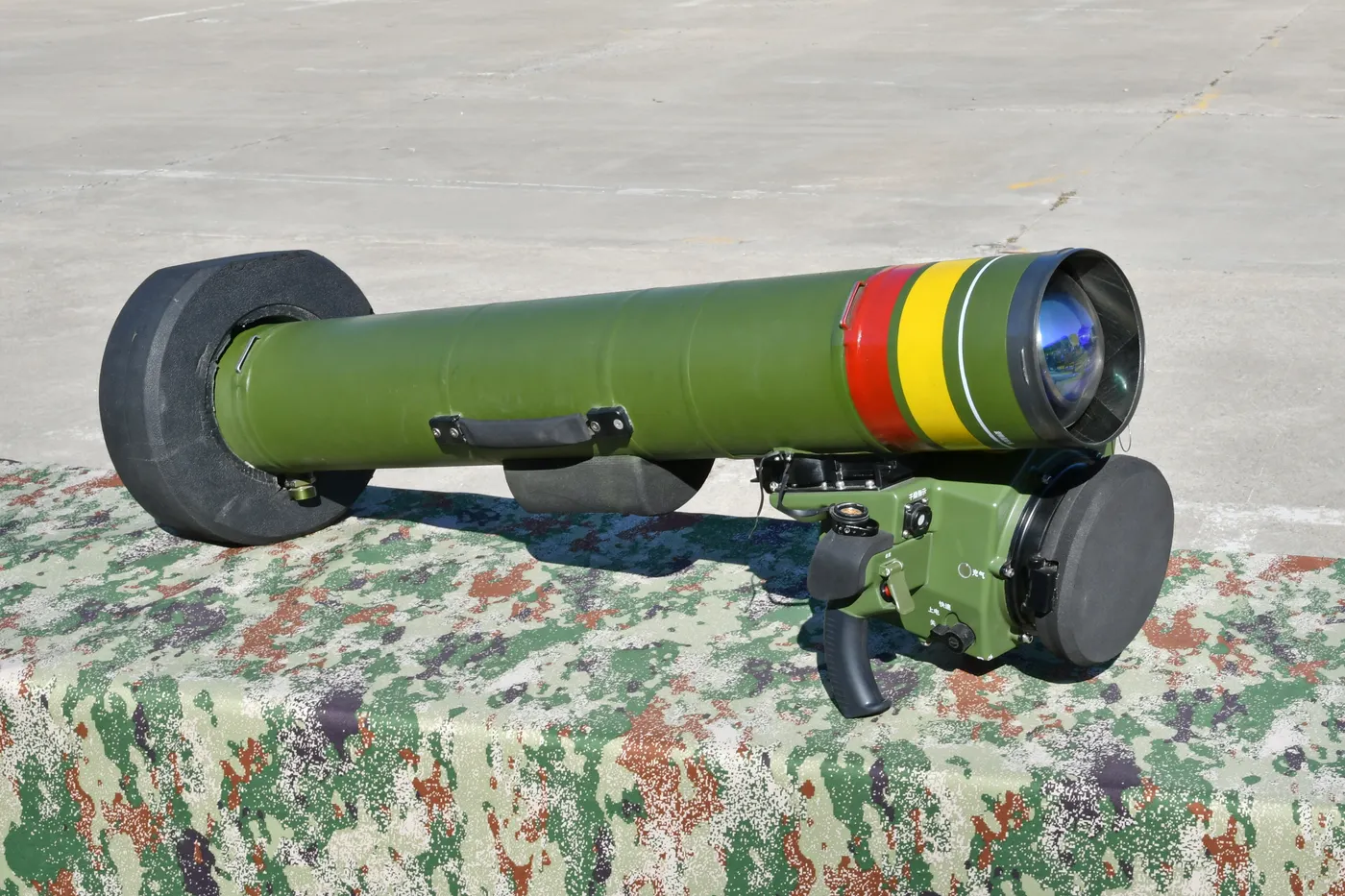

HJ-12
Category
Country
Prime contractor
Production
2020–
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ANTI-TANK GUIDED MISSILES (ATGM) · MODERN ERA
7
PERFORMANCE/PRICE
85
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the anti-tank guided missiles (atgm) category, regardless of era.
02 / Specs & Design
◎General7MOD.7
- Missile TypeAnti-tank missile
- Service Entry Year2020
- DesignerNorinco
- Length0.98 m
- Diameter135 mm
- Launch Weight17 kg
- In ServiceYes
◈Guidance5MOD.5
- Guidance TypeInfrared
- Seeker Typeinfrared homing, TV imaging dual-mode seeker
- Fire-and-ForgetYes
- Top-Attack CapableYes
- Imaging Infrared SeekerYes
▣Propulsion2MOD.2
- Propulsion TypeSolid fuel rocket
- Boost StageYes
◇Performance1MOD.1
- Maximum Range4 km
◆Warhead3MOD.3
- Warhead TypeTandem shaped charge HEAT
- Tandem HEAT ChargeYes
- Penetration (RHA)1,100 mm
▤Launch Platform4MOD.4
- Launch Platformman-portable
- Ground-LaunchedYes
- Man-PortableYes
- Launcher TypeLaunch tube
⬢Production1MOD.1
- Production Start2,014 year
▲Warhead Detail1MOD.1
- Explosive Filler TypeTandem shaped charge HEAT
03 / History
SERVICE LIFESPANStill in Service
- 2020Production started
6
years in service
5
countries operating
ⓘ The producing country still actively operates it.
04 / Operators
Operator Countries5country
05 / MASS Score
ANTI-TANK GUIDED MISSILES (ATGM) RANKING Anti-Tank Guided Missiles (ATGM) · Modern Era
MASS RANKINGSMASS ↗
9ANTI-TANK GUIDED MISSILES (ATGM)7MODERN ERA · ANTI-TANK GUIDED MISSILES (ATGM)14PEOPLE'S REPUBLIC OF CHINA · ALL WEAPONS33PERFORMANCE/PRICE · ANTI-TANK GUIDED MISSILES (ATGM)
ⓘ Rankings are within theAnti-Tank Guided Missiles (ATGM)category.
📖 TERMS ON THIS PAGE8terms
The initial propulsion phase where a high-thrust motor accelerates the missile to operational velocity.
Fire-and-forget refers to a missile guidance system where the missile guides itself to its target after launch, requiring no further input from the operator.
Launched from a ground-based platform, such as a vehicle or tripod, rather than an aircraft or other airborne system.
A guidance system in ATGMs that uses infrared sensors to create a thermal image of the target for precise homing.
Electromagnetic radiation with wavelengths longer than visible light, used in missile guidance systems to detect and track targets based on heat signatures.
A lightweight, shoulder-fired anti-tank guided missile system designed for individual soldier transport and operation.
A tandem warhead configuration in anti-tank missiles where a smaller precursor charge detonates reactive armor, followed by a larger main charge to penetrate the underlying armor.
A guidance mode for anti-tank missiles where the warhead detonates downward onto the thinner top armor of armored vehicles.
