01 / Overview

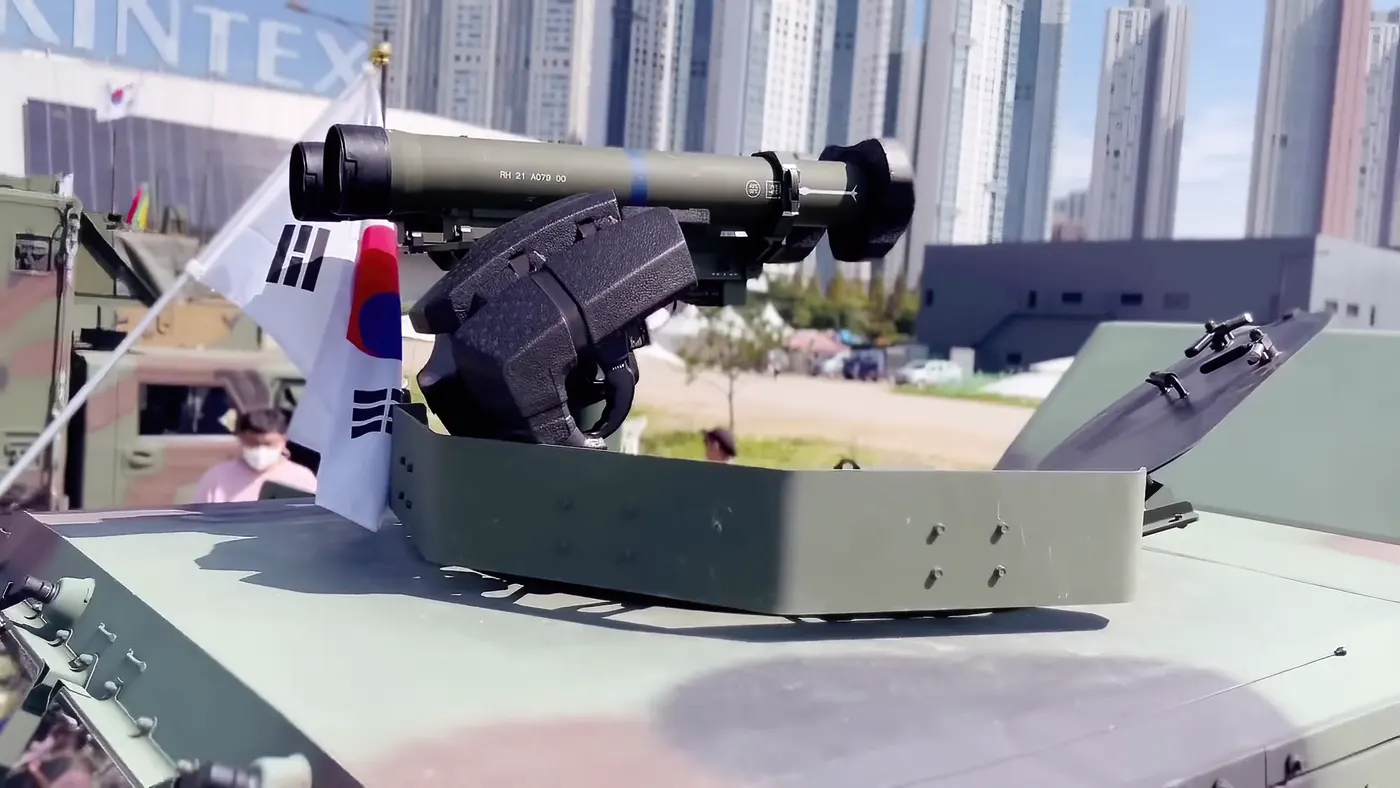

AT-1K Raybolt
Category
Country
Prime contractor
Production
2017–
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ANTI-TANK GUIDED MISSILES (ATGM) · MODERN ERA
2
PERFORMANCE/PRICE
88
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the anti-tank guided missiles (atgm) category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Missile TypeAnti-tank guided missile
- Service Entry Year2017
- DesignerAgency for Defense Development ; Hanwha Defense (launcher) ; LIG Nex1 (missile)
- Launch Weight13 kg
- In ServiceYes
◈Guidance6MOD.6
- Guidance TypeInfrared
- Seeker TypeImaging infrared
- Fire-and-ForgetYes
- Top-Attack CapableYes
- Imaging Infrared SeekerYes
- Sea-SkimmingNo
▣Propulsion3MOD.3
- Propulsion TypeRocket
- Motor TypeSolid-propellant rocket motor
- Fuel / PropellantSolid
◇Performance5MOD.5
- Maximum Range3,000 km
- Top Speed581 m/s
- Top Speed (Mach)1.7 Mach
- Flight ProfileTop-attack and direct-attack
- HypersonicNo
◆Warhead4MOD.4
- Warhead TypeTandem HEAT
- Tandem HEAT ChargeYes
- Penetration (RHA)900 mm
- Nuclear-CapableNo
▤Launch Platform6MOD.6
- Launch PlatformMan-portable launcher
- Air-LaunchedNo
- Ground-LaunchedYes
- Naval-LaunchedNo
- Man-PortableYes
- Launcher TypePortable tripod/vehicle-mounted
⬢Production3MOD.3
- Operators4
- Variants1
- Production Start2,017 year
▲Warhead Detail2MOD.2
- Detonation Mechanism / FuzeContact fuze
- Explosive Filler TypeHEAT
03 / History
SERVICE LIFESPANStill in Service
- 2017Production started
- 2020First deployment: Second Nagorno-Karabakh War
9
years in service
7
countries operating
ⓘ The producing country still actively operates it.
04 / Operators
Operator Countries7country
05 / MASS Score
ANTI-TANK GUIDED MISSILES (ATGM) RANKING Anti-Tank Guided Missiles (ATGM) · Modern Era
MASS RANKINGSMASS ↗
4ANTI-TANK GUIDED MISSILES (ATGM)2MODERN ERA · ANTI-TANK GUIDED MISSILES (ATGM)3SOUTH KOREA · ALL WEAPONS5PERFORMANCE/PRICE · ANTI-TANK GUIDED MISSILES (ATGM)
ⓘ Rankings are within theAnti-Tank Guided Missiles (ATGM)category.
📖 TERMS ON THIS PAGE7terms
Fire-and-forget refers to a missile guidance system where the missile guides itself to its target after launch, requiring no further input from the operator.
Launched from a ground-based platform, such as a vehicle or tripod, rather than an aircraft or other airborne system.
A guidance system in ATGMs that uses infrared sensors to create a thermal image of the target for precise homing.
Electromagnetic radiation with wavelengths longer than visible light, used in missile guidance systems to detect and track targets based on heat signatures.
A lightweight, shoulder-fired anti-tank guided missile system designed for individual soldier transport and operation.
A tandem warhead configuration in anti-tank missiles where a smaller precursor charge detonates reactive armor, followed by a larger main charge to penetrate the underlying armor.
A guidance mode for anti-tank missiles where the warhead detonates downward onto the thinner top armor of armored vehicles.
