01 / Overview

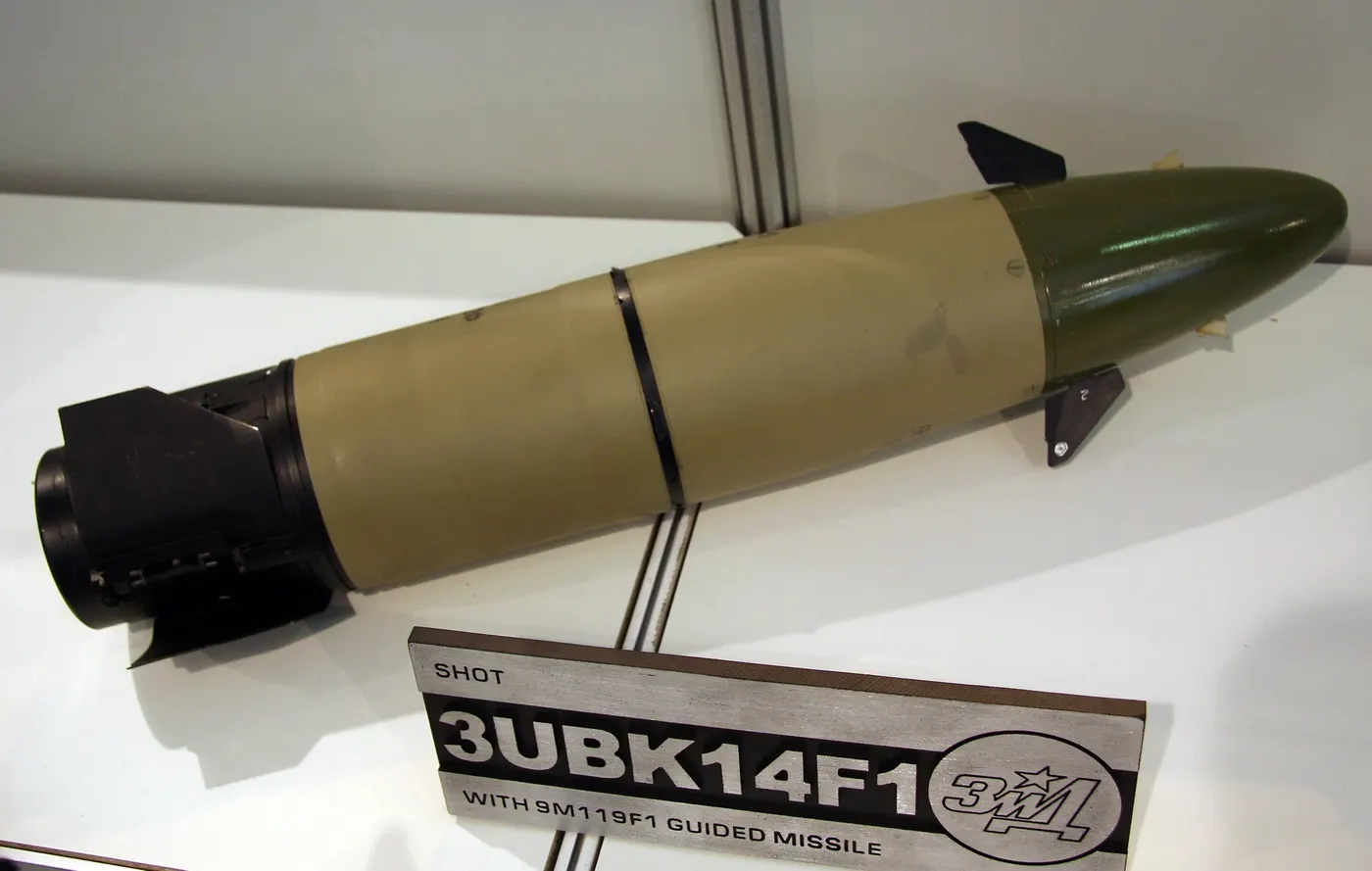

9M119 Svir
Category
Country
Prime contractor
Production
1980–
Quantity
119
Unit Price (current)
$52.6K↗ 40% inflation · 2012→2025
Original Price
$37.5K (2012)
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ANTI-TANK GUIDED MISSILES (ATGM) · COLD WAR
20
PERFORMANCE/PRICE
78
UNIT COST (2025 USD)
$52.6K
Original: $37.5K (2012)
Inflation: +%40
ⓘ Performance/Price and MASS score are computed across all units in the anti-tank guided missiles (atgm) category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- Missile Typegun-launched anti-tank missile
- Service Entry Year1985
- DesignerTula Machinery Design Bureau (Tula KBP)
- Diameter125 mm
- Launch Weight16.5 kg
- In ServiceYes
◈Guidance8MOD.8
- Guidance TypeBeam-Riding
- Seeker Typelaser beam-riding
- Fire-and-ForgetNo
- Two-Way DatalinkNo
- Top-Attack CapableNo
- Imaging Infrared SeekerNo
- Inertial / GPS GuidanceNo
- Sea-SkimmingNo
▣Propulsion5MOD.5
- Propulsion Typerocket
- Motor Typesolid-propellant
- Boost StageYes
- Two-StageNo
- Fuel / Propellantsolid
◇Performance5MOD.5
- Minimum Range0.075 km
- Maximum Range4 km
- Top Speed (Mach)1.2 Mach
- Flight Profilesupersonic
- HypersonicNo
◆Warhead6MOD.6
- Warhead Typetandem HEAT
- Warhead Weight4.5 kg
- Tandem HEAT ChargeYes
- Penetration (RHA)800 mm
- Proximity FuzeNo
- Nuclear-CapableNo
▤Launch Platform6MOD.6
- Launch Platform125 mm smoothbore guns
- Air-LaunchedNo
- Ground-LaunchedYes
- Naval-LaunchedNo
- Man-PortableNo
- Launcher Type125 mm tank gun autoloader
⬢Production4MOD.4
- Unit Cost37,500 USD
- Operators13
- Variants1
- Production Start1,980 year
▲Warhead Detail3MOD.3
- Detonation Mechanism / Fuzeimpact
- Explosive Filler Weight4.5 kg
- Explosive Filler TypeTandem hollow-charge
03 / History
SERVICE LIFESPANStill in Service
- 1980Production started
- 1994First deployment: First Chechen War
46
years in service
119
units produced
13
countries operating
ⓘ The producing country still actively operates it. 1 countries retired it.
05 / MASS Score
ANTI-TANK GUIDED MISSILES (ATGM) RANKING Anti-Tank Guided Missiles (ATGM) · Cold War
MASS RANKINGSMASS ↗
55ANTI-TANK GUIDED MISSILES (ATGM)20COLD WAR · ANTI-TANK GUIDED MISSILES (ATGM)1117RUSSIA · ALL WEAPONS10PRICE · ANTI-TANK GUIDED MISSILES (ATGM)676PRICE · ALL WEAPONS35PERFORMANCE/PRICE · ANTI-TANK GUIDED MISSILES (ATGM)
ⓘ Rankings are within theAnti-Tank Guided Missiles (ATGM)category.
📖 TERMS ON THIS PAGE4terms
Guidance method where a missile follows a directed energy beam (e.g., radar or laser) to its target.
The initial propulsion phase where a high-thrust motor accelerates the missile to operational velocity.
Launched from a ground-based platform, such as a vehicle or tripod, rather than an aircraft or other airborne system.
A tandem warhead configuration in anti-tank missiles where a smaller precursor charge detonates reactive armor, followed by a larger main charge to penetrate the underlying armor.
