01 / Overview

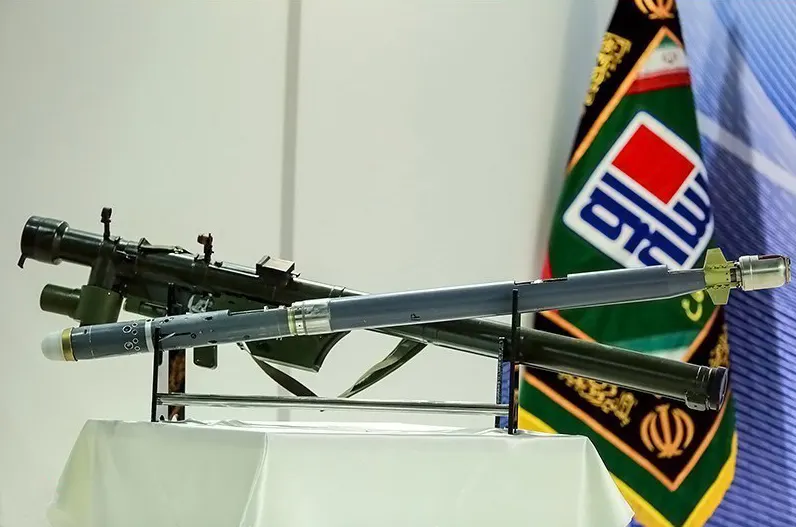

Misagh-3
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the manpads category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- System TypeMANPADS
- Service Entry Year2017
- Engagement Layer (SHORAD/Med/Long)SHORAD
- MobileYes
- Crew1
- In ServiceYes
◈Effector / Missile8MOD.8
- Missile / EffectorMisagh-3
- Ready Missiles1
- Maximum Range5 km
- Minimum Range0.5 km
- Maximum Altitude4,000 m
- Minimum Altitude0 m
- Missile Speed (Mach)2.88 Mach
- Warhead TypeHE-FRAG
▣Guidance6MOD.6
- Guidance TypeInfrared homing
- Fire-and-ForgetYes
- Command GuidanceNo
- Track-Via-MissileNo
- Simultaneous Engagements1
- All-WeatherNo
◇Radar & Sensors5MOD.5
- Search Range5 km
- AESA RadarNo
- Targets Tracked1
- 360° CoverageYes
- Passive / EO ModeYes
◆Gun (if applicable)1MOD.1
▤Mobility & Deployment4MOD.4
- PlatformMan portable
- Reaction Time1
- Emplacement Time1
- AmphibiousNo
⬢Production2MOD.2
- Operators2
- Variants3
▲Warhead Detail3MOD.3
- Detonation Mechanism / Fuzelaser proximity fuse
- Explosive Filler Weight1.4 kg
- Explosive Filler Type1.5 kg (3.3 lb) FRAG-HE
03 / History
SERVICE LIFESPANStill in Service
- 2017Production started
9
years in service
2
countries operating
ⓘ The producing country still actively operates it.
05 / MASS Score
MANPADS RANKING MANPADS · Modern Era
MASS RANKINGSMASS ↗
ⓘ Rankings are within theMANPADScategory.
📖 TERMS ON THIS PAGE4terms
Omni-directional protection provided by a missile system, enabling targets to be engaged from any angle.
Fire-and-forget refers to a missile guidance system where the missile guides itself to its target after launch, requiring no further input from the operator.
Mobile: a capability indicating the MANPADS can be transported and operated by a single soldier or small team, enabling rapid deployment and relocation.
