Data Quality84%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the field guns category.
01 / Overview

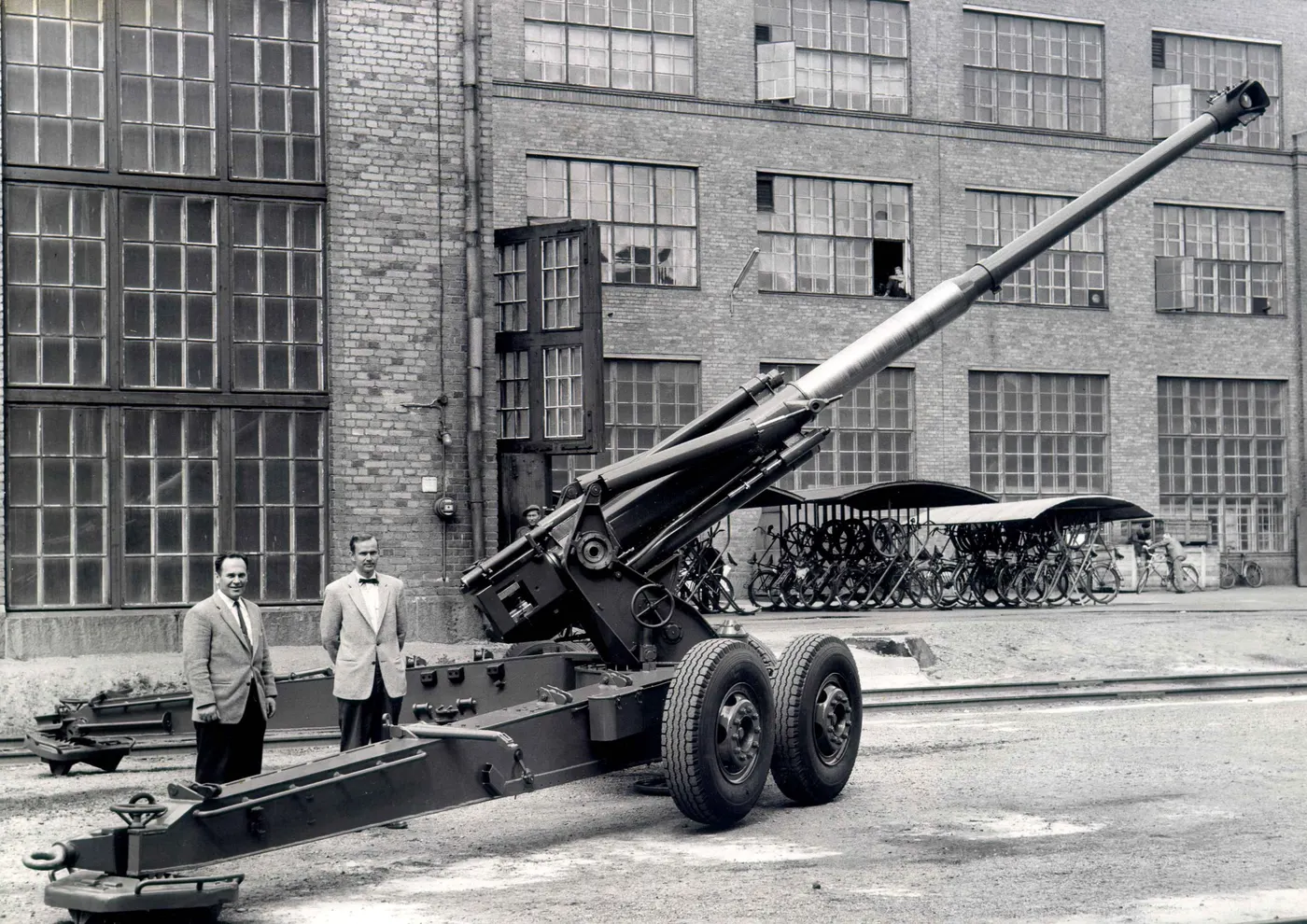

122 K 60
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
FIELD GUNS · EARLY COLD WAR
4
PERFORMANCE/PRICE
85
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the field guns category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- Service Entry Year1960
- Combat Weight7,200 kg
- Travel Weight7,200 kg
- Crew6
- Carriage TypeSplit Trail
- In ServiceYes
◈Ordnance7MOD.7
- Calibre122 mm
- Barrel Length (calibres)60
- Breech TypeSliding Block
- Recoil SystemHydro-Pneumatic
- Muzzle BrakeYes
- Bore EvacuatorNo
- Tube Life (rounds)10,000
▣Performance5MOD.5
- Minimum Range0.5 km
- Maximum Range (standard)21 km
- Maximum Range (rocket-assisted)27 km
- Muzzle Velocity885 m/s
- Rate of Fire (sustained)6
◇Ammunition8MOD.8
- Projectile Weight25 kg
- Charge Zones4
- HE RoundYes
- Smoke RoundYes
- Illumination RoundYes
- Cluster / DPICMNo
- Precision-Guided RoundNo
- MRSI CapableNo
◆Fire Control5MOD.5
▤Mobility6MOD.6
- Self-PropelledNo
- Emplacement Time5
- Displacement Time5
- Shoot-and-ScootNo
- AutoloaderNo
- Protected Crew CabNo
⬢Ammunition Handling2MOD.2
- Ready Rounds1
- Total Rounds Carried30
▲Dimensions3MOD.3
- Length7.5 m
- Width2.2 m
- Height2 m
◎Production2MOD.2
- Total Production2,000
- Production Start1,960 year
◈Self-Propelled Chassis1MOD.1
03 / History
SERVICE LIFESPANRetired
- 1960Production started
66
years in service
2,000
units produced
0
countries operating
ⓘ The producing country no longer actively operates it. 1 countries retired it.
04 / Variants
▚ WEAPON FAMILY
06 / MASS Score
FIELD GUNS RANKING Field Guns · Early Cold War
MASS RANKINGSMASS ↗
ⓘ Rankings are within theField Gunscategory.
📖 TERMS ON THIS PAGE7terms
High Explosive (HE) round: an artillery or mortar projectile containing explosive filler designed to inflict damage through blast and fragmentation effects.
Recoil system using a combination of liquid and compressed gas to absorb and return energy from firing.
A device attached to a firearm's muzzle to redirect propellant gases, reducing recoil and muzzle rise during firing.
A breech mechanism in artillery where a solid block slides horizontally to open and close the breech for loading.
Smoke grenades are pyrotechnic devices deployed by infantry fighting vehicles to create a visual screen, obscuring movement or positions from enemy observation or targeting.
A towed artillery carriage configuration where the gun is transported with its two wheels separated, allowing for easier deployment and lower profile when in firing position.
These terms are listed automatically because they appear on this page.full encyclopedia →
