01 / Overview

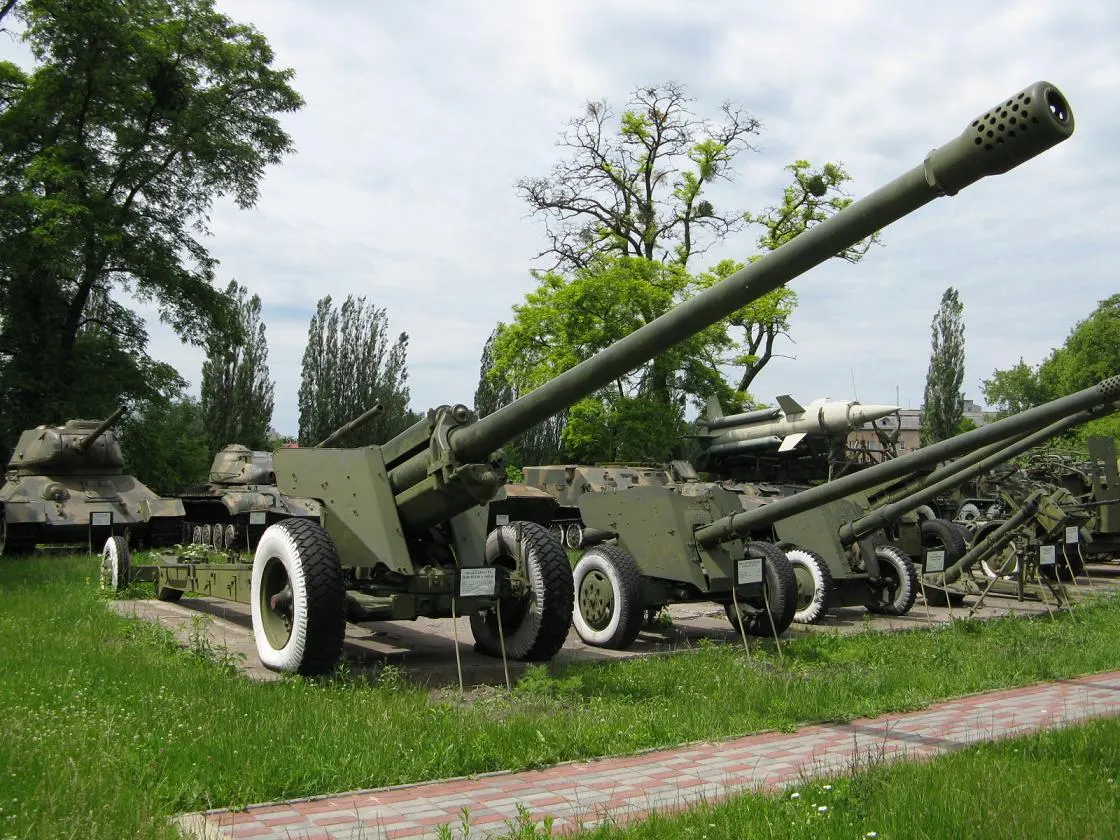

M-46 field gun
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
FIELD GUNS · EARLY COLD WAR
2
PERFORMANCE/PRICE
85
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the field guns category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Service Entry Year1951
- Combat Weight7,700 kg
- Crew8
- Carriage TypeSplit Trail
- In ServiceYes
◈Ordnance7MOD.7
- Calibre130 mm
- Barrel Length (calibres)55
- Ordnance Type130 x 845 mm R
- Breech TypeSliding Block
- Recoil SystemHydro-Pneumatic
- Muzzle BrakeYes
- Bore EvacuatorNo
▣Performance7MOD.7
- Maximum Range (standard)27.15 km
- Maximum Range (rocket-assisted)44 km
- Muzzle Velocity930 m/s
- Rate of Fire (burst)6
- Rate of Fire (sustained)5
- Elevation−2.5° to 45°
- Traverse50°
◇Ammunition6MOD.6
◆Fire Control5MOD.5
▤Mobility4MOD.4
- Self-PropelledNo
- Shoot-and-ScootNo
- AutoloaderNo
- Protected Crew CabNo
⬢Dimensions3MOD.3
- Length11.73 m
- Width2.45 m
- Height2.55 m
▲Self-Propelled Chassis1MOD.1
03 / History
SERVICE LIFESPANStill in Service
- 1945First deployment: Cold War
- 1951Production started
- 1968Sale: India (1,000 units)
- 1971Production ended
75
years in service
20
years in production
55
countries operating
ⓘ The producing country still actively operates it. 4 countries retired it.
04 / Conflicts
M-46 FIELD GUN · CONFLICTS SERVED IN13% win·13% loss
Total Conflicts
8
Victories
1
Ongoing
0
Losses
1
2014–Yemeni Civil War—→2011–2024Syrian Civil WarDecisive victory→1998–1999Kosovo War—→1975–2002Angolan Civil War—→1975–1990Lebanese Civil War—→1974–1991Ethiopian Civil War—→1961–1991Eritrean War of Independence—→1955–1975Vietnam WarDecisive victory→
ⓘ Shown only from conflicts recorded in our database.
05 / Operators
Operator Inventory39country · 5,041units
5,041active
M-46 field gunSALES2records
ⓘ "Present Value" is an estimated amount adjusted for inflation.
06 / MASS Score
FIELD GUNS RANKING Field Guns · Early Cold War
MASS RANKINGSMASS ↗
ⓘ Rankings are within theField Gunscategory.
📖 TERMS ON THIS PAGE8terms
Cluster/DPICM refers to artillery ammunition that disperses submunitions for anti-personnel and anti-vehicle effects.
High Explosive (HE) round: an artillery or mortar projectile containing explosive filler designed to inflict damage through blast and fragmentation effects.
Recoil system using a combination of liquid and compressed gas to absorb and return energy from firing.
A device attached to a firearm's muzzle to redirect propellant gases, reducing recoil and muzzle rise during firing.
A breech mechanism in artillery where a solid block slides horizontally to open and close the breech for loading.
Smoke grenades are pyrotechnic devices deployed by infantry fighting vehicles to create a visual screen, obscuring movement or positions from enemy observation or targeting.
A towed artillery carriage configuration where the gun is transported with its two wheels separated, allowing for easier deployment and lower profile when in firing position.
These terms are listed automatically because they appear on this page.full encyclopedia →
