Data Quality84%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the utility / transport helicopters category.
01 / Overview

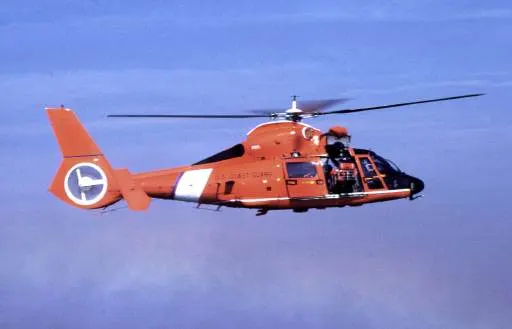

Aerospatiale HH-65 Dolphin
Category
Prime contractor
Production
1985–2024
Quantity
102
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
UTILITY / TRANSPORT HELICOPTERS · COLD WAR
48
PERFORMANCE/PRICE
78
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the utility / transport helicopters category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- First Flight1980
- Service Entry Year1985
- Crew4
- Passengers0
- Primary Rolesearch and rescue, medevac, homeland security, drug interdiction, ice breaking, pollution control
- In ServiceYes
◈Powerplant7MOD.7
- Engine TypeHoneywell LTS101-750B-2 turboshaft (original), later Turbomeca Arriel 2C2-CG
- Number of Engines2
- Engine Power (each)1,094 kW
- Rotor Configurationmain rotor with 4 blades, fenestron tail rotor
- Main Rotor Diameter10.7 m
- Main Rotor Blades4
- Anti-Torque Typefenestron ducted-fan
▣Performance8MOD.8
- Top Speed260 km/h
- Cruise Speed230 km/h
- Never-Exceed Speed (VNE)278 km/h
- Service Ceiling4,500 m
- Range600 km
- Ferry Range800 km
- Rate of Climb6 m/s
- Endurance180
◇Dimensions & Weights7MOD.7
- Fuselage Length13 m
- Height3.9 m
- Rotor Disc Area90
- Empty Weight2,800 kg
- Max Takeoff Weight4,300 kg
- Useful Load1,500 kg
- Cabin Volume7
◆Armament & Mission8MOD.8
- Hardpoints0
- Weapons Payload1,000 kg
- GunM240G 7.62 mm machine gun (MH-65C AUF package)
- Anti-Tank MissilesNo
- Air-to-Air MissilesNo
- Rocket PodsNo
- Sling Load Capacity2,000 kg
- Rescue HoistYes
▤Avionics7MOD.7
⬢Survivability6MOD.6
▲Production2MOD.2
- Total Built102
- Variants7
◎Service History3MOD.3
- Production Start1985
- Production End2024
- Operational StatusIn service
03 / History
SERVICE LIFESPANStill in Service
- 1985Production started
- 2024Production ended
41
years in service
39
years in production
102
units produced
2
countries operating
05 / MASS Score
UTILITY / TRANSPORT HELICOPTERS RANKING Utility / Transport Helicopters · Cold War
MASS RANKINGSMASS ↗
149UTILITY / TRANSPORT HELICOPTERS48COLD WAR · UTILITY / TRANSPORT HELICOPTERS144PERFORMANCE/PRICE · UTILITY / TRANSPORT HELICOPTERS
ⓘ Rankings are within theUtility / Transport Helicopterscategory.
📖 TERMS ON THIS PAGE7terms
Autopilot/AFCS (Automatic Flight Control System) is an avionics suite that automatically controls a helicopter’s attitude, navigation and flight path, providing stability augmentation and reducing pilot workload.
Seats designed to absorb crash forces, reducing injury to occupants.
Combined forward-looking infrared (FLIR) and electro-optical (EO) sensor turret for target acquisition and tracking, typically mounted on aircraft or ground vehicles.
A radar system that tracks targets and guides weapons to intercept them, used for weapon aiming and missile guidance in combat aircraft and ships.
A glass cockpit is an aircraft cockpit featuring electronic instrument displays, typically LCD or CRT screens, replacing traditional analog gauges.
A mechanical device used to lift personnel or cargo via a cable, typically mounted on helicopters for rescue or recovery operations.
A radar system used to detect and track precipitation, storm intensity, and wind patterns to assist in flight operations and mission planning.
