Data Quality87%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the utility / transport helicopters category.
01 / Overview

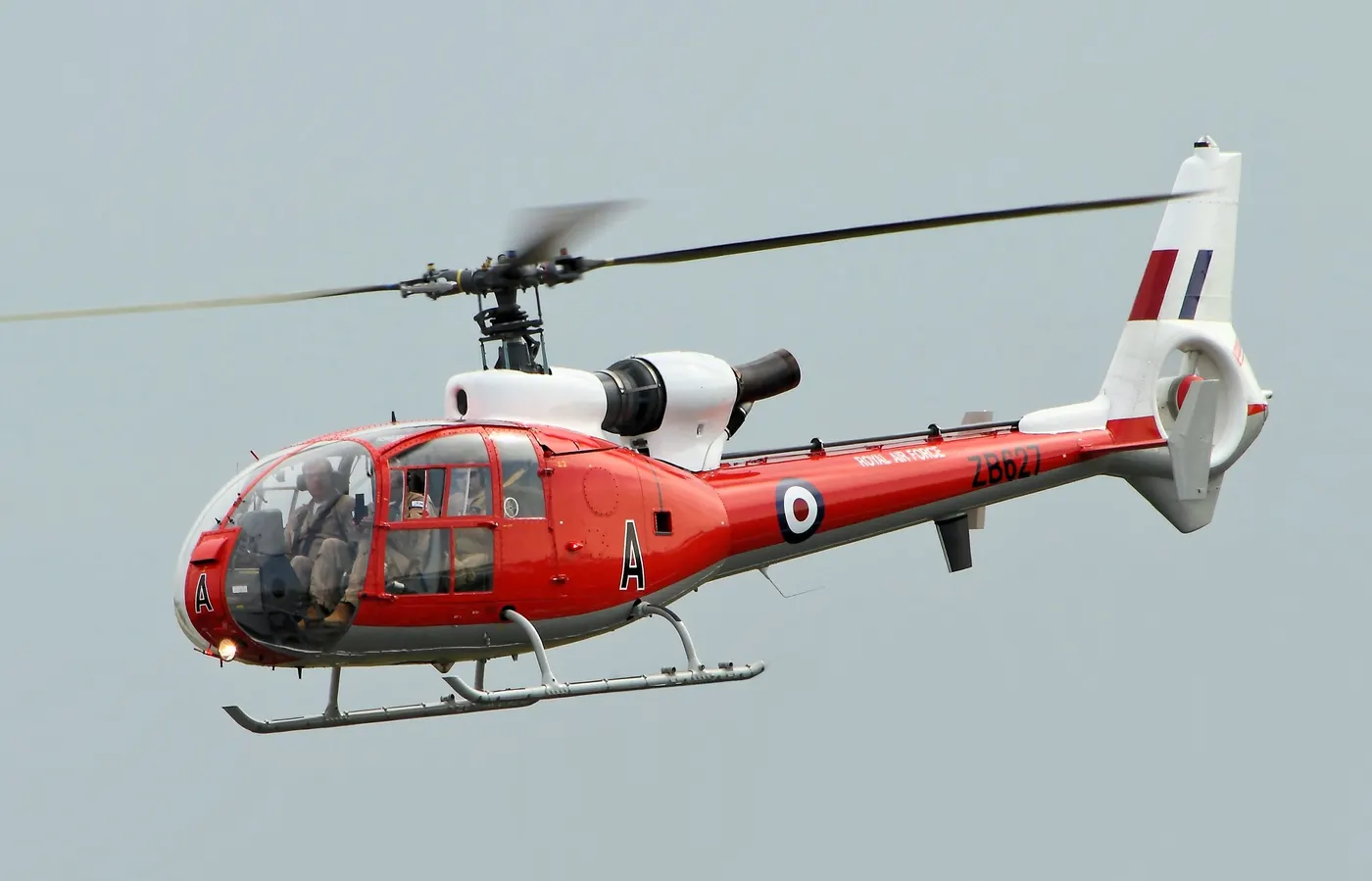

Gazeller
Category
Country
Prime contractor
Production
1973–1996
Quantity
1,700
Operators
Conflicts
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
UTILITY / TRANSPORT HELICOPTERS · COLD WAR
55
PERFORMANCE/PRICE
75
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the utility / transport helicopters category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- First Flight1967
- Service Entry Year1973
- Crew2
- Passengers4
- Primary RoleLight attack, reconnaissance, utility transport
- In ServiceYes
◈Powerplant8MOD.8
- Engine TypeTurbomeca Astazou IIIA
- Number of Engines1
- Engine Power (each)440 kW
- Transmission Rating440 kW
- Rotor ConfigurationSingle main rotor with Fenestron tail rotor
- Main Rotor Diameter10.5 m
- Main Rotor Blades3
- Anti-Torque TypeFenestron
▣Performance10MOD.10
- Top Speed310 km/h
- Cruise Speed264 km/h
- Never-Exceed Speed (VNE)310 km/h
- Service Ceiling5,000 m
- Hover Ceiling (IGE)2,800 m
- Hover Ceiling (OGE)2,000 m
- Range670 km
- Ferry Range1,000 km
- Rate of Climb9 m/s
- Endurance180
◇Dimensions & Weights7MOD.7
- Fuselage Length11.97 m
- Height3.15 m
- Rotor Disc Area86.5
- Empty Weight905 kg
- Max Takeoff Weight1,800 kg
- Useful Load895 kg
- Cabin Volume1.5
◆Armament & Mission8MOD.8
- Hardpoints4
- Weapons Payload500 kg
- Gun20mm M621 cannon (some variants)
- Anti-Tank MissilesYes
- Air-to-Air MissilesYes
- Rocket PodsYes
- Sling Load Capacity700 kg
- Rescue HoistYes
▤Avionics7MOD.7
⬢Survivability6MOD.6
▲Production2MOD.2
- Total Built1,700
- Variants20
◎Service History3MOD.3
- Production Start1967
- Production End1996
- Operational StatusIn service with multiple countries as of 2024
03 / History
SERVICE LIFESPANStill in Service
- 1945First deployment: Cold War
- 1973Production started
- 1988Entered service
- 1996Production ended
53
years in service
23
years in production
1,700
units produced
27
countries operating
ⓘ The producing country still actively operates it.
04 / Conflicts
GAZELLER · CONFLICTS SERVED IN0% win
Total Conflicts
1
Victories
0
Ongoing
0
Losses
0
ⓘ Shown only from conflicts recorded in our database.
05 / Operators
Operator Inventory6country · 12units
12active
06 / MASS Score
UTILITY / TRANSPORT HELICOPTERS RANKING Utility / Transport Helicopters · Cold War
MASS RANKINGSMASS ↗
172UTILITY / TRANSPORT HELICOPTERS55COLD WAR · UTILITY / TRANSPORT HELICOPTERS379FRANCE · ALL WEAPONS149PERFORMANCE/PRICE · UTILITY / TRANSPORT HELICOPTERS
ⓘ Rankings are within theUtility / Transport Helicopterscategory.
📖 TERMS ON THIS PAGE6terms
Anti-Tank Guided Missile: a missile designed to destroy tanks.
Air-to-air missiles are guided missiles fired from aircraft to engage other aircraft. They are used for self-defense and to gain air superiority.
Combined forward-looking infrared (FLIR) and electro-optical (EO) sensor turret for target acquisition and tracking, typically mounted on aircraft or ground vehicles.
A sight mounted on a helicopter's mast for targeting.
A mechanical device used to lift personnel or cargo via a cable, typically mounted on helicopters for rescue or recovery operations.
Aerodynamic containers mounted on aircraft, typically helicopters or fighter jets, that hold and launch unguided rockets in rapid succession.
These terms are listed automatically because they appear on this page.full encyclopedia →
