01 / Overview

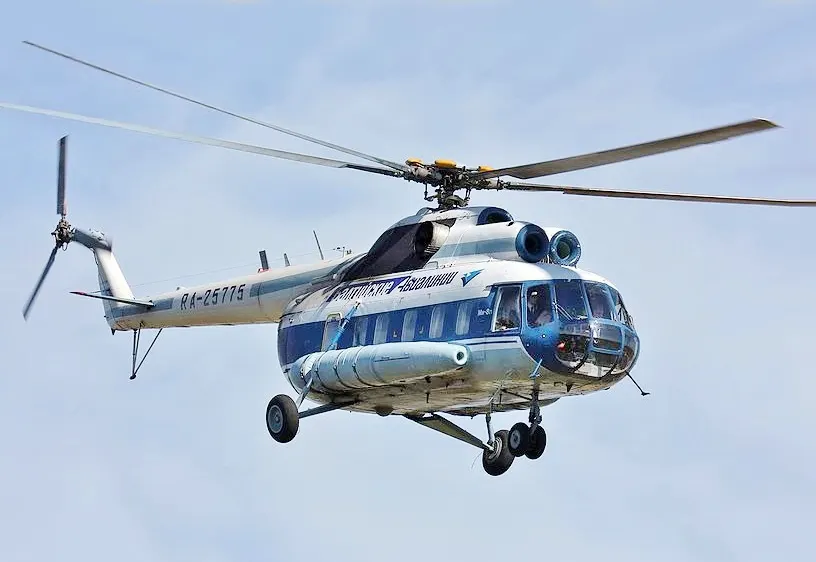

Mil Mi-8
Category
Country
Prime contractor
Production
1965–
Quantity
17,000
Operators
Conflicts
02 / Specs & Design
◎General6MOD.6
- First Flight1961
- Service Entry Year1967
- Crew3
- Passengers24
- Primary RoleTransport helicopter, airborne command post, armed gunship, reconnaissance platform
- In ServiceYes
◈Powerplant8MOD.8
- Engine TypeKlimov TV3-117MT
- Number of Engines2
- Engine Power (each)1,268 kW
- Transmission Rating2,200 kW
- Rotor ConfigurationSingle main rotor with tail rotor
- Main Rotor Diameter21.29 m
- Main Rotor Blades5
- Anti-Torque TypeTail rotor
▣Performance10MOD.10
- Top Speed260 km/h
- Cruise Speed225 km/h
- Never-Exceed Speed (VNE)250 km/h
- Service Ceiling4,500 m
- Hover Ceiling (IGE)1,760 m
- Hover Ceiling (OGE)1,300 m
- Range450 km
- Ferry Range960 km
- Rate of Climb8 m/s
- Endurance240
◇Dimensions & Weights7MOD.7
- Fuselage Length18.4 m
- Height5.65 m
- Rotor Disc Area356
- Empty Weight7,260 kg
- Max Takeoff Weight12,000 kg
- Useful Load3,500 kg
- Cabin Volume23
◆Armament & Mission8MOD.8
- Hardpoints6
- Weapons Payload4,000 kg
- Gun1x or 2x PK machine gun (Mi-8T), 1x 12.7 mm KV-4 machine gun (Mi-8TVK)
- Anti-Tank MissilesYes
- Air-to-Air MissilesNo
- Rocket PodsYes
- Sling Load Capacity3,000 kg
- Rescue HoistYes
▤Avionics7MOD.7
⬢Survivability6MOD.6
▲Production2MOD.2
- Total Built17,000
- Variants20
◎Service History2MOD.2
- Production Start1961
- Operational StatusIn service
03 / History
SERVICE LIFESPANStill in Service
- 1945First deployment: Cold War
- 1965Production started
61
years in service
17,000
units produced
95
countries operating
ⓘ The producing country still actively operates it.
04 / Conflicts
MIL MI-8 · CONFLICTS SERVED IN0% win
Total Conflicts
3
Victories
0
Ongoing
0
Losses
0
ⓘ Shown only from conflicts recorded in our database.
05 / Operators
Operator Countries95country
06 / MASS Score
Not enough weapon data to rank this category.
📖 TERMS ON THIS PAGE4terms
Anti-Tank Guided Missile: a missile designed to destroy tanks.
Autopilot/AFCS (Automatic Flight Control System) is an avionics suite that automatically controls a helicopter’s attitude, navigation and flight path, providing stability augmentation and reducing pilot workload.
A mechanical device used to lift personnel or cargo via a cable, typically mounted on helicopters for rescue or recovery operations.
Aerodynamic containers mounted on aircraft, typically helicopters or fighter jets, that hold and launch unguided rockets in rapid succession.
These terms are listed automatically because they appear on this page.full encyclopedia →
