01 / Overview

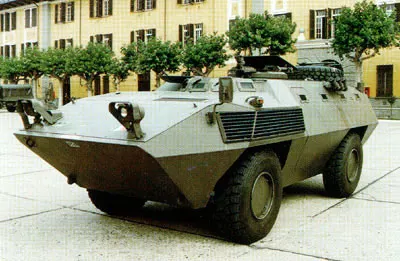

Fiat 6614
Country
Prime contractor
Production
1972–
Quantity
6,616
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ARMOURED PERSONNEL CARRIERS (APC) · COLD WAR
45
PERFORMANCE/PRICE
78
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the armoured personnel carriers (apc) category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- Service Entry Year1972
- Combat Weight8.5 t
- Crew2
- Passengers / Dismounts10
- Vehicle ClassArmoured Personnel Carrier
- In ServiceYes
◈Armament7MOD.7
- Main ArmamentCM6614 & KM900:; 1 x MG 3 machine gun, K12 machine gun or; 1 x .50 cal M2 machine gun; CM6616:; 1 x 7.62mm MG 3 machine
- Main Gun Calibre12.7 mm
- Gun TypeMachine gun
- Secondary Armament1 x 7.62 mm MG 3 or K12 machine gun; 1 x .50 cal M2 machine gun (CM6614 variants)
- ATGM CapableNo
- Remote Weapon StationNo
- Stabilized GunNo
▣Protection11MOD.11
- Armour TypeWelded steel
- Hull Front (RHA equiv.)8 mm
- Active Protection SystemNo
- Reactive Armour (ERA)No
- Slat / Cage ArmourNo
- Mine / IED ProtectionNo
- V-Shaped HullNo
- Spall LinerNo
- NBC ProtectionNo
- Smoke GrenadesYes
- Fire SuppressionNo
◇Mobility7MOD.7
- Engine TypeIveco 8062.24
- Engine Power160 hp
- Power-to-Weight18.82 hp
- SuspensionWheeled 4x4
- Max Road Speed100 km/h
- Operational Range700 km
- AmphibiousYes
◆Electronics & Optics7MOD.7
▤Dimensions3MOD.3
- Length5.86 m
- Width2.5 m
- Height1.78 m
⬢Production2MOD.2
- Production Start1,972 year
- Variants3
03 / History
SERVICE LIFESPANStill in Service
- 1972Production started
- 1976Sale: South Korea
- 1978First deployment: Somali Civil War
54
years in service
6,616
units produced
8
countries operating
ⓘ The producing country still actively operates it.
04 / Operators
Operator Countries8country
Fiat 6614SALES1records
| Year | Buyer | Quantity | Amount | Present Value (2025) |
|---|---|---|---|---|
| 1976 |  South Korea | — | — | — |
ⓘ "Present Value" is an estimated amount adjusted for inflation.
05 / MASS Score
ARMOURED PERSONNEL CARRIERS (APC) RANKING Armoured Personnel Carriers (APC) · Cold War
MASS RANKINGSMASS ↗
158ARMOURED PERSONNEL CARRIERS (APC)45COLD WAR · ARMOURED PERSONNEL CARRIERS (APC)276ITALY · ALL WEAPONS60PERFORMANCE/PRICE · ARMOURED PERSONNEL CARRIERS (APC)
ⓘ Rankings are within theArmoured Personnel Carriers (APC)category.
📖 TERMS ON THIS PAGE2terms
Smoke grenades are pyrotechnic devices deployed by infantry fighting vehicles to create a visual screen, obscuring movement or positions from enemy observation or targeting.
