01 / Overview

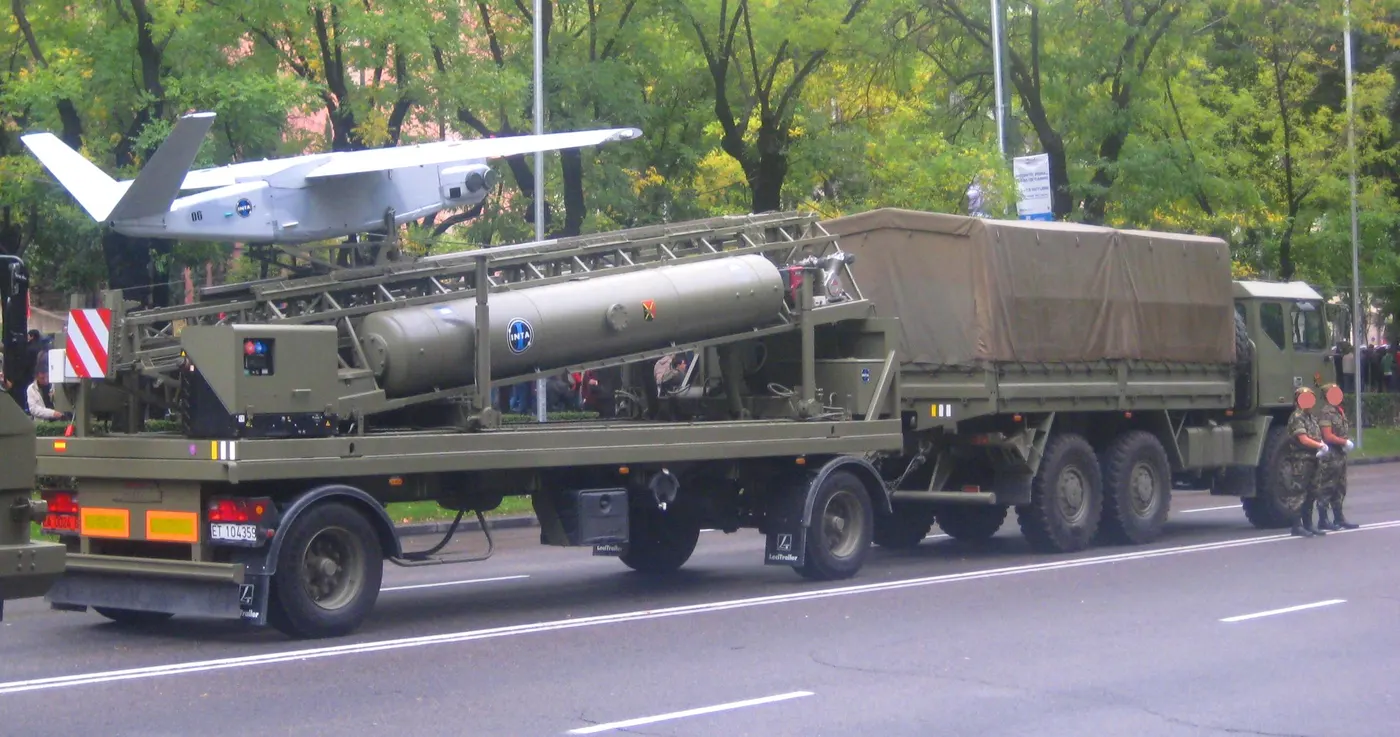

INTA SIVA
Country
Prime contractor
Production
1988–2006
Quantity
4
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
RECONNAISSANCE / SURVEILLANCE DRONES · COLD WAR
10
PERFORMANCE/PRICE
80
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the reconnaissance / surveillance drones category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- UAV Classtactical
- Category (MALE/HALE/Tactical/Micro)Reconnaissance / Surveillance Drones
- First Flight2006
- Service Entry Year2006
- Primary RoleReconnaissance
- In ServiceYes
◈Airframe6MOD.6
- Length3.5 m
- Wingspan4.2 m
- Height1.1 m
- Empty Weight120 kg
- Max Takeoff Weight180 kg
- Low ObservableNo
▣Powerplant5MOD.5
- Engine Typepiston
- Number of Engines1
- Engine Power22 kW
- Electric PropulsionNo
- Propeller / Configurationfixed-pitch
◇Performance7MOD.7
- Top Speed185 km/h
- Cruise Speed150 km/h
- Service Ceiling5,000 m
- Range120 km
- Endurance6
- Combat / Operating Radius100 km
- Maximum Payload30 kg
◆Payload & Sensors6MOD.6
- EO/IR SensorYes
- SAR / GMTI RadarNo
- SIGINT PayloadNo
- Laser DesignatorNo
- Sensor Payload Weight20 kg
- Comms RelayYes
▤Armament4MOD.4
- ArmedNo
- Hardpoints0
- Weapons Payload0 kg
- Air-to-Ground MissilesNo
⬢Control & Autonomy5MOD.5
- Control Typeground control station
- Satellite (BLOS) LinkYes
- Autonomous CapableYes
- Swarming CapableNo
- Automatic Takeoff/LandingYes
▲Production1MOD.1
- Total Built4
◎Service History1MOD.1
- Operational Statusactive
03 / History
SERVICE LIFESPANStill in Service
- 1988Production started
- 2006Production ended
38
years in service
18
years in production
4
units produced
1
countries operating
ⓘ The producing country still actively operates it.
05 / MASS Score
RECONNAISSANCE / SURVEILLANCE DRONES RANKING Reconnaissance / Surveillance Drones · Cold War
MASS RANKINGSMASS ↗
152RECONNAISSANCE / SURVEILLANCE DRONES10COLD WAR · RECONNAISSANCE / SURVEILLANCE DRONES79SPAIN · ALL WEAPONS126PERFORMANCE/PRICE · RECONNAISSANCE / SURVEILLANCE DRONES
ⓘ Rankings are within theReconnaissance / Surveillance Dronescategory.
📖 TERMS ON THIS PAGE5terms
Automatic Takeoff/Landing is a UAV capability that enables a drone to initiate and complete takeoff and landing sequences autonomously using onboard sensors and control software.
Capable of performing tasks or missions without direct human control, using onboard systems to make decisions and execute actions.
A capability enabling drones to relay communication signals between units, extending operational range and maintaining network connectivity in combat environments.
Electro-optical/infrared sensor combining daylight cameras and thermal imagers for real-time target detection, tracking, and identification in military drones.
A communication link between a drone and its control station via satellite relay, enabling beyond-line-of-sight (BLOS) operations.
These terms are listed automatically because they appear on this page.full encyclopedia →
