Data Quality86%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the towed artillery & mortars category.
01 / Overview

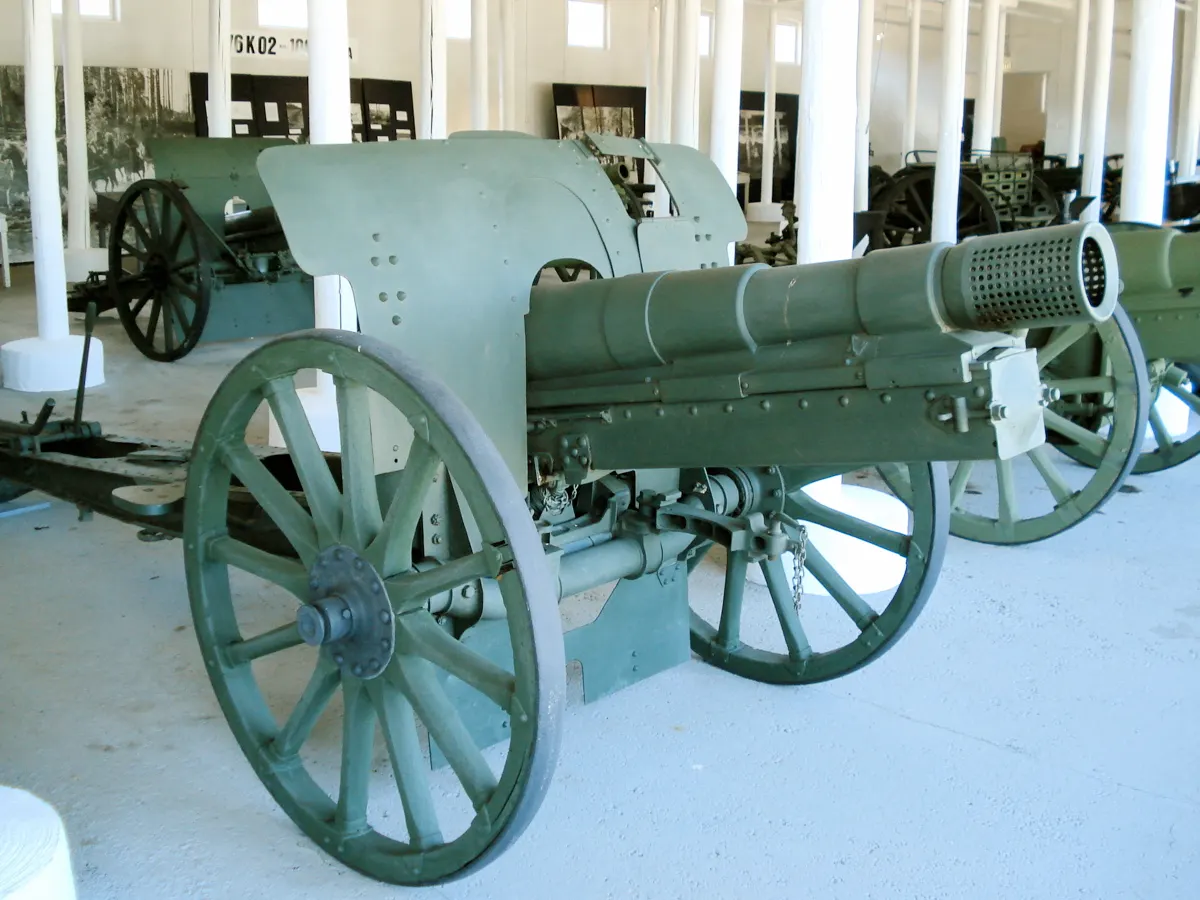

M1909/37
Category
Country
Production
1937–1941
Quantity
900
Operators
Conflicts
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
TOWED ARTILLERY & MORTARS · INTERWAR PERIOD
25
PERFORMANCE/PRICE
75
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the towed artillery & mortars category, regardless of era.
02 / Specs & Design
◎General6MOD.6
- Service Entry Year1937
- Combat Weight1,450 kg
- Travel Weight2,480 kg
- Crew6
- Carriage TypeBox Trail
- In ServiceYes
◈Ordnance7MOD.7
- Calibre121.92 mm
- Barrel Length (calibres)14
- Ordnance Type122 x 261mmR
- Breech TypeSliding Block
- Recoil SystemHydro-Spring
- Muzzle BrakeNo
- Bore EvacuatorNo
▣Performance4MOD.4
- Maximum Range (standard)8.9 km
- Rate of Fire (sustained)2
- Elevation−1° to 43°
- Traverse4°
◇Ammunition5MOD.5
- Ammunition TypesHE; HEAT (from 1943)
- Charge Zones6
- HE RoundYes
- Precision-Guided RoundNo
- MRSI CapableNo
◆Fire Control5MOD.5
▤Mobility5MOD.5
- Self-PropelledNo
- Prime Moverhorse-drawn or truck
- Shoot-and-ScootNo
- AutoloaderNo
- Protected Crew CabNo
⬢Dimensions1MOD.1
- Length1.69 m
▲Production2MOD.2
- Total Production900
- Production Start1,937 year
◎Self-Propelled Chassis2MOD.2
- Suspensionunsprung wooden wheels
- NBC ProtectionNo
03 / History
SERVICE LIFESPANRetired
- 1937Production started
- 1939First deployment: Winter War
- 1941Production ended
89
years in service
4
years in production
900
units produced
0
countries operating
ⓘ 1 countries retired it.
04 / Conflicts
M1909/37 · CONFLICTS SERVED IN0% win·100% loss
Total Conflicts
1
Victories
0
Ongoing
0
Losses
1
ⓘ Shown only from conflicts recorded in our database.
06 / MASS Score
TOWED ARTILLERY & MORTARS RANKING Towed Artillery & Mortars · Interwar Period
MASS RANKINGSMASS ↗
176TOWED ARTILLERY & MORTARS25INTERWAR PERIOD · TOWED ARTILLERY & MORTARS1220RUSSIA · ALL WEAPONS158PERFORMANCE/PRICE · TOWED ARTILLERY & MORTARS
ⓘ Rankings are within theTowed Artillery & Mortarscategory.
📖 TERMS ON THIS PAGE4terms
A towed artillery carriage configuration where the gun is mounted between two wheels with a box-like structure connecting them.
High Explosive (HE) round: an artillery or mortar projectile containing explosive filler designed to inflict damage through blast and fragmentation effects.
A breech mechanism in artillery where a solid block slides horizontally to open and close the breech for loading.
These terms are listed automatically because they appear on this page.full encyclopedia →
