Data Quality87%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the towed artillery & mortars category.
01 / Overview

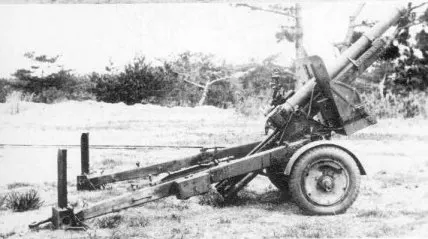

Type 91 105 mm howitzer
Category
Country
Production
1931–1944
Quantity
1,249
Unit Price (current)
$161.8K↗ 2216% inflation · 1939→2025
Original Price
$7.0K (1939)
Operators
Conflicts
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
TOWED ARTILLERY & MORTARS · INTERWAR PERIOD
21
PERFORMANCE/PRICE
85
UNIT COST (2025 USD)
$161.8K
Original: $7.0K (1939)
Inflation: +%2216
ⓘ Performance/Price and MASS score are computed across all units in the towed artillery & mortars category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Service Entry Year1931
- Combat Weight1,500 kg
- Travel Weight1,979 kg
- Carriage TypeSplit Trail
- In ServiceNo
◈Ordnance5MOD.5
- Calibre105 mm
- Barrel Length (calibres)24
- Ordnance Typelight howitzer
- Breech TypeInterrupted Screw
- Recoil SystemHydro-Pneumatic
▣Performance6MOD.6
- Maximum Range (standard)10.771 km
- Muzzle Velocity546 m/s
- Rate of Fire (burst)15
- Rate of Fire (sustained)2
- Elevation-5° to +45°
- Traverse20° right,20° left
◇Ammunition4MOD.4
- Projectile Weight15 kg
- Ammunition Typeshigh-explosive, chemical, armor-piercing, shrapnel, HEAT
- Charge Zones4
- HE RoundYes
◆Mobility3MOD.3
- Self-PropelledNo
- Prime Moverteam of six horses
- AutoloaderNo
▤Dimensions3MOD.3
- Length4.72 m
- Width1.84 m
- Height1.73 m
⬢Production3MOD.3
- Total Production1,249
- Production Start1,931 year
- Unit Cost6,986 USD
03 / History
SERVICE LIFESPANRetired
- 1927First deployment: Chinese Civil War
- 1931Production started
- 1944Production ended
95
years in service
13
years in production
1,249
units produced
0
countries operating
ⓘ 1 countries retired it.
04 / Conflicts
TYPE 91 105 MM HOWITZER · CONFLICTS SERVED IN0% win
Total Conflicts
1
Victories
0
Ongoing
0
Losses
0
ⓘ Shown only from conflicts recorded in our database.
06 / MASS Score
TOWED ARTILLERY & MORTARS RANKING Towed Artillery & Mortars · Interwar Period
MASS RANKINGSMASS ↗
163TOWED ARTILLERY & MORTARS21INTERWAR PERIOD · TOWED ARTILLERY & MORTARS249JAPAN · ALL WEAPONS13PRICE · TOWED ARTILLERY & MORTARS763PRICE · ALL WEAPONS56PERFORMANCE/PRICE · TOWED ARTILLERY & MORTARS
ⓘ Rankings are within theTowed Artillery & Mortarscategory.
📖 TERMS ON THIS PAGE4terms
High Explosive (HE) round: an artillery or mortar projectile containing explosive filler designed to inflict damage through blast and fragmentation effects.
Recoil system using a combination of liquid and compressed gas to absorb and return energy from firing.
A breech mechanism in artillery where the screw threads are interrupted to allow quick opening and closing of the breech.
A towed artillery carriage configuration where the gun is transported with its two wheels separated, allowing for easier deployment and lower profile when in firing position.
These terms are listed automatically because they appear on this page.full encyclopedia →
