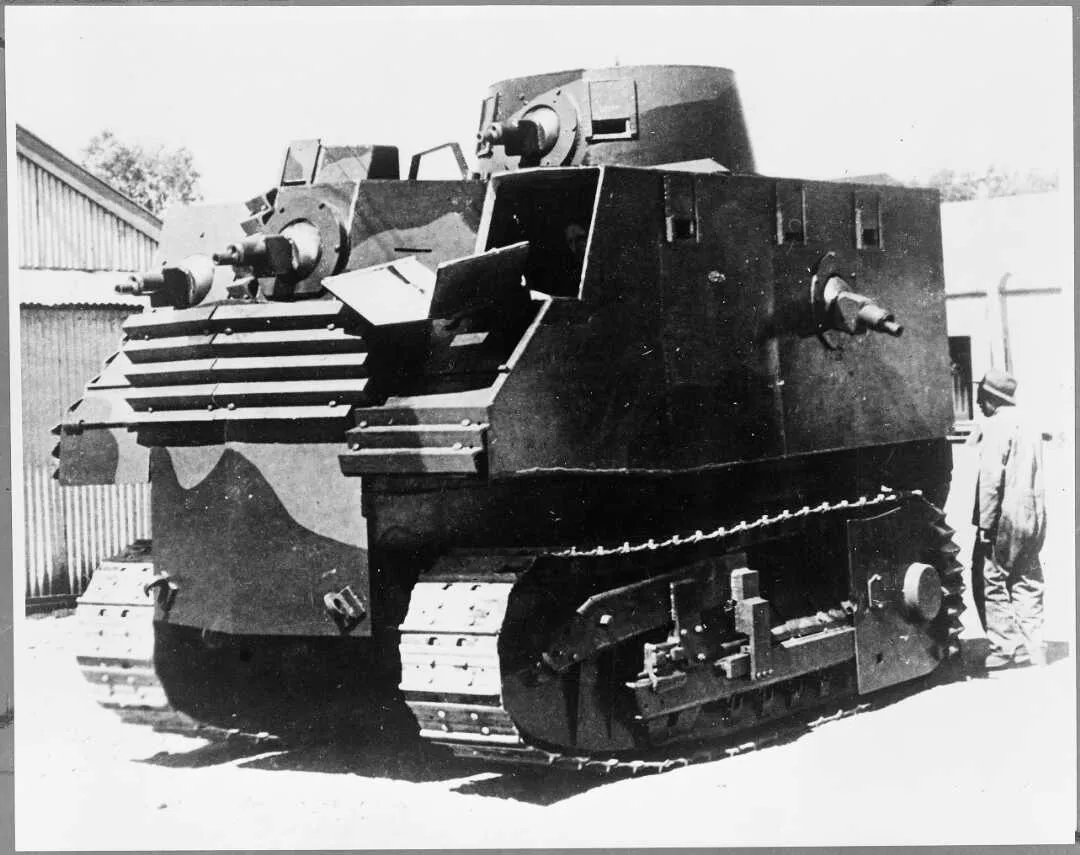

Bob Semple tank
Category
Country
Prime contractor
Production
1940–1941
Quantity
3
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General4MOD.4
- Tank ClassificationLight Tank
- GenerationWW2
- Combat Weight25.4 t
- Crew Size6
◈Firepower7MOD.7
- Main Gun Calibre7.7 mm
- Main Gun TypeNone
- Can Fire APFSDSNo
- Can Fire HEATNo
- Can Fire HE-FragNo
- Can Fire ATGMNo
- Coaxial / Secondary MG Count0
▣Protection7MOD.7
- Armour TypeRiveted Steel
- Hull Front Thickness (Max)12 mm
- Turret Front Thickness (Max)12 mm
- Has ERANo
- Has APSNo
- NBC ProtectionNo
- Smoke GrenadesNo
◇Mobility7MOD.7
- Engine Power127 hp
- Power-to-Weight Ratio5 hp/t
- Fuel TypeDiesel
- Transmission TypeManual
- Suspension TypeLeaf Spring
- Max Road Speed24 km/h
- Operational Range (Road)160 km
◆Dimensions3MOD.3
- Length (Hull)4.2 m
- Width3.3 m
- Height3.65 m
▤Electronics & Optics8MOD.8
⬢Amphibious & Special3MOD.3
▲Production & Service4MOD.4
- Total Production Units3
- Years in Production1 year
- Current Service StatusMuseum Only
- Notable Variants Count0
03 / History
SERVICE LIFESPANRetired
- 1940Production started
- 1941Production ended
- 1942Entered service
86
years in service
1
years in production
3
units produced
0
countries operating
ⓘ The producing country no longer actively operates it. 1 countries retired it.
05 / MASS Score
TANKS RANKING Tanks · World War II
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE6terms
Type of internal combustion engine fuel, refined from crude oil.
A leaf spring is a simple spring made of one or more flexible metal strips bound together, used to absorb shocks and support weight in vehicle suspension, including some tanks.
A tank with reduced armor and weight for increased mobility.
Manual: a tank transmission in which the driver selects gear changes manually, typically using a clutch pedal and gear lever to engage gears.
Armour made from steel plates joined by rivets.
