01 / Overview

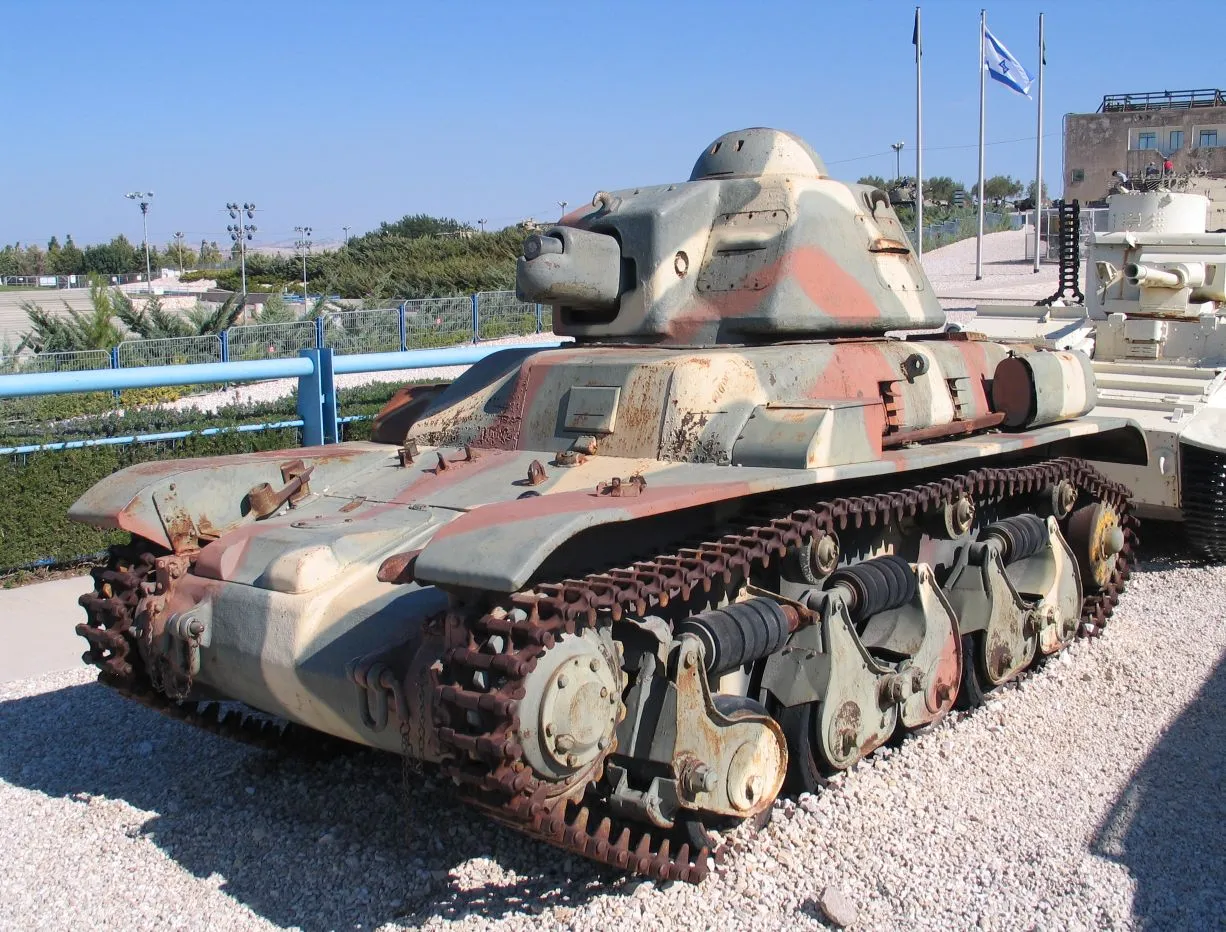

Renault R40
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Tank ClassificationLight Tank
- GenerationWW2
- Combat Weight11.6 t
- Crew Size2
- Service Entry Year1940
◈Firepower6MOD.6
- Main Gun Calibre37 mm
- Main Gun TypeRifled
- Main Gun Length (Calibres)33
- Muzzle Velocity (Max)700 m/s
- Effective Range (Main Gun)1,000 m
- Ammunition Stowage90
▣Protection4MOD.4
- Hull Front Thickness (Max)40 mm
- Turret Front Thickness (Max)45 mm
- Frontal RHA Equivalent (KE)30 mm
- Frontal RHA Equivalent (CHEM)40 mm
◇Mobility6MOD.6
- Engine Power82 hp
- Power-to-Weight Ratio7.07 hp/t
- Fuel TypePetrol
- Suspension TypeTorsion Bar
- Max Road Speed20 km/h
- Operational Range (Road)130 km
◆Dimensions4MOD.4
- Length (Hull)4.02 m
- Width1.87 m
- Height2.13 m
- Ground Clearance0.32 m
▤Electronics & Optics1MOD.1
⬢Production & Service2MOD.2
- Years in Production1 year
- Current Service StatusRetired
03 / History
SERVICE LIFESPANRetired
- 1936Entered service
- 1939First deployment: World War II
- 1940Production started
86
years in service
0
years in production
145
units produced
0
countries operating
ⓘ The producing country no longer actively operates it. 5 countries retired it.
04 / Operators
Operator Countries5country
05 / MASS Score
TANKS RANKING Tanks · World War II
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE4terms
A tank with reduced armor and weight for increased mobility.
A refined product derived from crude oil, used as a fuel for internal combustion engines. A volatile, flammable liquid mixture of hydrocarbons.
A rifled gun has spiral grooves cut into its barrel.
A torsion bar is a steel rod that resists twisting and serves as a spring in tank suspensions, with one end fixed to the hull and the other connected to a lever arm moving the road wheel.
