01 / Overview

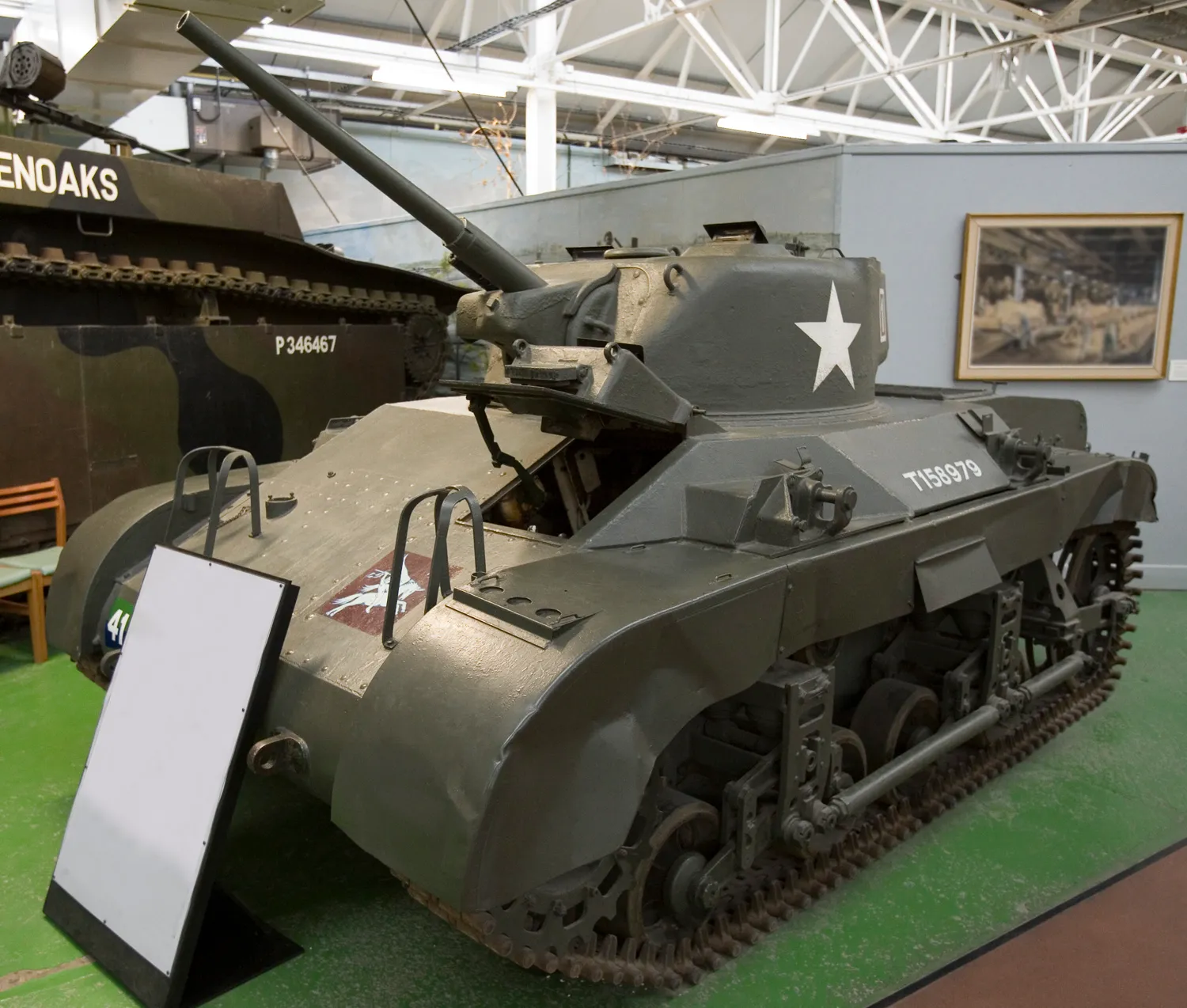

M22 Locust
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General4MOD.4
- Tank ClassificationLight Tank
- GenerationWW2
- Combat Weight7.4 t
- Crew Size3
◈Firepower8MOD.8
- Main Gun Calibre37 mm
- Main Gun TypeRifled
- Ammunition Stowage50
- Can Fire APFSDSNo
- Can Fire HEATNo
- Can Fire HE-FragYes
- Can Fire ATGMNo
- Coaxial / Secondary MG Count1
▣Protection6MOD.6
- Armour TypeWelded Rolled Homogeneous Armour (RHA)
- Hull Front Thickness (Max)12.5 mm
- Has ERANo
- Has APSNo
- NBC ProtectionNo
- Smoke GrenadesNo
◇Mobility7MOD.7
- Engine Power165 hp
- Power-to-Weight Ratio25.81 hp/t
- Fuel TypePetrol
- Transmission TypeManual
- Suspension TypeCoil Spring
- Max Road Speed64.368 km/h
- Operational Range (Road)217 km
◆Dimensions3MOD.3
- Length (Hull)3.658 m
- Width2.134 m
- Height1.829 m
▤Electronics & Optics8MOD.8
⬢Amphibious & Special3MOD.3
▲Production & Service4MOD.4
- Total Production Units830
- Years in Production4 year
- Current Service StatusRetired
- Notable Variants Count0
03 / History
SERVICE LIFESPANStill in Service
- 1939First deployment: World War II
- 1943Production started
- 1945Production ended
83
years in service
2
years in production
830
units produced
5
countries operating
ⓘ The producing country still actively operates it.
04 / Operators
Operator Countries5country
M22 LocustSALES1records
| Year | Buyer | Quantity | Amount | Present Value (2025) |
|---|---|---|---|---|
| — |  United Kingdom | 260 | — | — |
ⓘ "Present Value" is an estimated amount adjusted for inflation.
05 / MASS Score
TANKS RANKING Tanks · World War II
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE8terms
Coil spring: a helical metal spring used in vehicle suspension to absorb shocks and maintain wheel contact, compressing under load.
High-Explosive Fragmentation: ammunition that explodes on impact, releasing fragments.
A tank with reduced armor and weight for increased mobility.
Manual: a tank transmission in which the driver selects gear changes manually, typically using a clutch pedal and gear lever to engage gears.
A refined product derived from crude oil, used as a fuel for internal combustion engines. A volatile, flammable liquid mixture of hydrocarbons.
A rifled gun has spiral grooves cut into its barrel.
Armour made by welding and rolling homogeneous steel plates.
