Data Quality87%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the tanks category.
01 / Overview

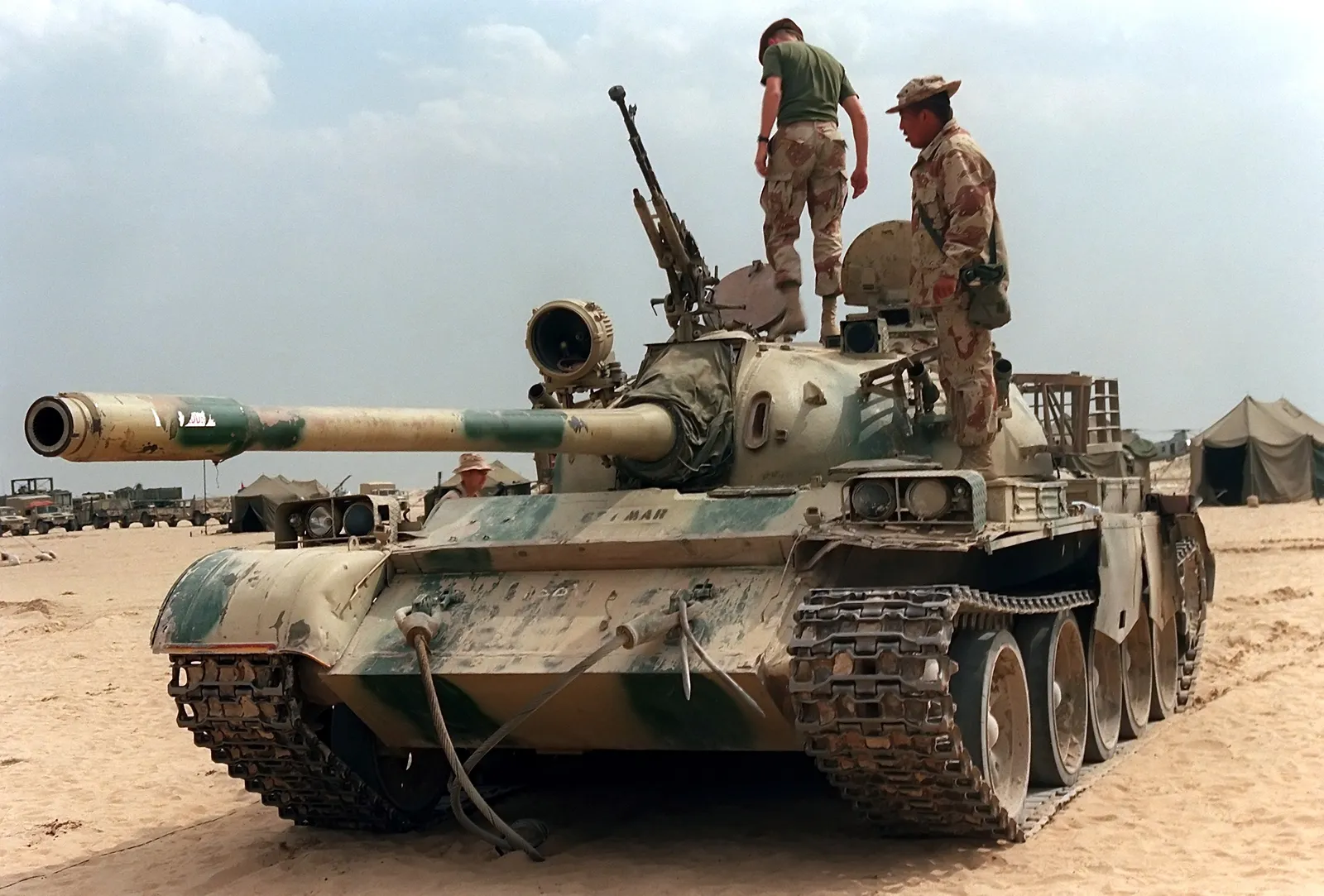

Type 69 tank
Category
Country
Prime contractor
Production
1974–
Operators
Conflicts
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Tank ClassificationMain Battle Tank (MBT)
- GenerationCold War
- Combat Weight36.7 t
- Crew Size4
- Service Entry Year1972
◈Firepower7MOD.7
- Main Gun Calibre100 mm
- Main Gun TypeRifled
- Can Fire APFSDSYes
- Can Fire HEATYes
- Can Fire HE-FragYes
- Can Fire ATGMNo
- Coaxial / Secondary MG Count1
▣Protection6MOD.6
- Armour TypeCast Steel
- Turret Front Thickness (Max)203 mm
- Has ERANo
- Has APSNo
- NBC ProtectionYes
- Smoke GrenadesYes
◇Mobility7MOD.7
- Engine Power580 hp
- Power-to-Weight Ratio15.8 hp/t
- Fuel TypeDiesel
- Transmission TypeManual
- Suspension TypeTorsion Bar
- Max Road Speed50 km/h
- Operational Range (Road)440 km
◆Dimensions3MOD.3
- Length (Hull)6.24 m
- Width3.3 m
- Height2.8 m
▤Electronics & Optics8MOD.8
⬢Amphibious & Special3MOD.3
▲Production & Service2MOD.2
- Current Service StatusActive Service
- Notable Variants Count3
03 / History
SERVICE LIFESPANStill in Service
- 1974Production started
- 1980First deployment: Iran–Iraq War
52
years in service
8
countries operating
ⓘ The producing country still actively operates it.
04 / Conflicts
TYPE 69 TANK · CONFLICTS SERVED IN50% win
Total Conflicts
2
Victories
1
Ongoing
0
Losses
0
ⓘ Shown only from conflicts recorded in our database.
05 / Operators
Operator Inventory7country · 2,318units
2,318active
06 / MASS Score
TANKS RANKING Tanks · Cold War
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE14terms
Armour-piercing fin-stabilized discarding sabot: a type of kinetic energy penetrator ammunition.
Steel alloy cast into shape for armour applications.
Type of internal combustion engine fuel, refined from crude oil.
High-Explosive Fragmentation: ammunition that explodes on impact, releasing fragments.
High-Explosive Anti-Tank: a type of projectile that uses a shaped charge to penetrate armor.
Optical device that uses laser pulses to measure the distance to a target with high precision.
A main battle tank is a heavily armored vehicle with a large caliber gun, used for front-line combat.
Manual: a tank transmission in which the driver selects gear changes manually, typically using a clutch pedal and gear lever to engage gears.
Nuclear, Biological, Chemical protection for tank crews.
Enhanced low-light visibility through specialized optics or sensors.
A rifled gun has spiral grooves cut into its barrel.
Handheld or vehicle-mounted devices that release dense smoke to obscure vision, conceal movements, or screen friendly forces from enemy observation.
Fire control system generation using gyroscopically stabilized optics to improve accuracy during vehicle movement.
A torsion bar is a steel rod that resists twisting and serves as a spring in tank suspensions, with one end fixed to the hull and the other connected to a lever arm moving the road wheel.
These terms are listed automatically because they appear on this page.full encyclopedia →
