Data Quality84%
MASS(Military Archive Scoring System)
ⓘ Regardless of era, the same scoring system applies to all units in the tanks category.
01 / Overview

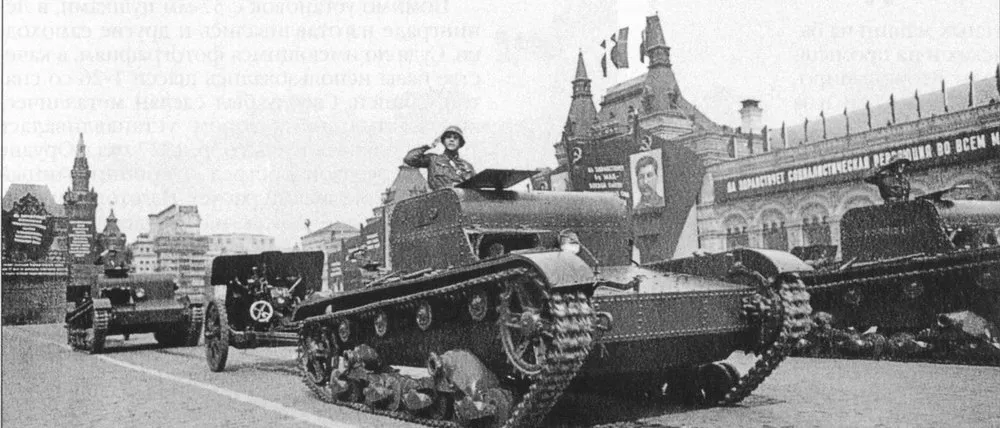

T-26T
Category
Country
Prime contractor
Production
1933–
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
TANKS · INTERWAR PERIOD
22
PERFORMANCE/PRICE
75
UNIT COST (2025 USD)
—
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Tank ClassificationLight Tank
- GenerationInterwar
- Combat Weight9.6 t
- Crew Size3
- Service Entry Year1932
◈Firepower8MOD.8
- Main Gun Calibre45 mm
- Main Gun TypeRifled
- Ammunition Stowage122
- Can Fire APFSDSNo
- Can Fire HEATNo
- Can Fire HE-FragYes
- Can Fire ATGMNo
- Coaxial / Secondary MG Count1
▣Protection8MOD.8
- Armour TypeRiveted Steel
- Hull Front Thickness (Max)15 mm
- Turret Front Thickness (Max)15 mm
- Frontal RHA Equivalent (KE)15 mm
- Has ERANo
- Has APSNo
- NBC ProtectionNo
- Smoke GrenadesNo
◇Mobility9MOD.9
- Engine Power90 hp
- Power-to-Weight Ratio9.38 hp/t
- Fuel TypePetrol
- Transmission TypeManual
- Suspension TypeLeaf Spring
- Max Road Speed31.1 km/h
- Max Off-Road Speed16 km/h
- Operational Range (Road)230 km
- Fording Depth1 m
◆Dimensions5MOD.5
- Length (Hull)4.65 m
- Length (Overall, Gun Forward)4.65 m
- Width2.44 m
- Height2.24 m
- Ground Clearance0.38 m
▤Electronics & Optics8MOD.8
⬢Amphibious & Special3MOD.3
▲Production & Service4MOD.4
- Total Production Units10,300
- Years in Production10 year
- Current Service StatusRetired
- Notable Variants Count53
03 / History
SERVICE LIFESPANRetired
- 1933Production started
93
years in service
0
countries operating
ⓘ 1 countries retired it.
04 / Variants
▚ WEAPON FAMILY
05 / Operators
Operator Countries1country
T-26TSALES2records
Spainⓘ "Present Value" is an estimated amount adjusted for inflation.
06 / MASS Score
TANKS RANKING Tanks · Interwar Period
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE8terms
High-Explosive Fragmentation: ammunition that explodes on impact, releasing fragments.
A leaf spring is a simple spring made of one or more flexible metal strips bound together, used to absorb shocks and support weight in vehicle suspension, including some tanks.
A tank with reduced armor and weight for increased mobility.
Manual: a tank transmission in which the driver selects gear changes manually, typically using a clutch pedal and gear lever to engage gears.
A refined product derived from crude oil, used as a fuel for internal combustion engines. A volatile, flammable liquid mixture of hydrocarbons.
A rifled gun has spiral grooves cut into its barrel.
Armour made from steel plates joined by rivets.
These terms are listed automatically because they appear on this page.full encyclopedia →
