01 / Overview

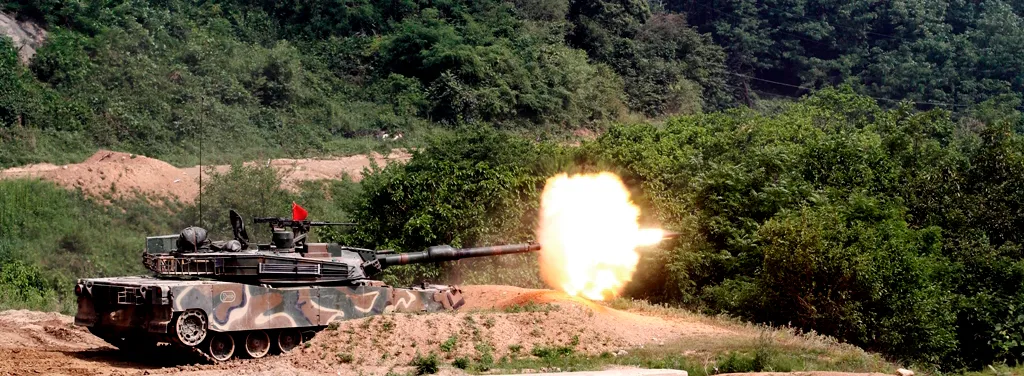

K1A1 tank
Category
Country
Prime contractor
Production
1996–2001
Quantity
484
Operators
💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
ⓘ Performance/Price and MASS score are computed across all units in the tanks category, regardless of era.
02 / Specs & Design
◎General5MOD.5
- Tank ClassificationMain Battle Tank (MBT)
- GenerationPost-Cold War
- Combat Weight51 t
- Crew Size4
- Service Entry Year1996
◈Firepower11MOD.11
- Main Gun Calibre120 mm
- Main Gun TypeSmoothbore
- Main Gun Length (Calibres)44
- Muzzle Velocity (Max)1,650 m/s
- Effective Range (Main Gun)4,000 m
- Ammunition Stowage40
- Can Fire APFSDSYes
- Can Fire HEATYes
- Can Fire HE-FragYes
- Can Fire ATGMNo
- Coaxial / Secondary MG Count1
▣Protection9MOD.9
- Armour TypeComposite Armour
- Hull Front Thickness (Max)100 mm
- Turret Front Thickness (Max)185 mm
- Frontal RHA Equivalent (KE)600 mm
- Frontal RHA Equivalent (CHEM)1,000 mm
- Has ERANo
- Has APSNo
- NBC ProtectionYes
- Smoke GrenadesYes
◇Mobility9MOD.9
- Engine Power1,200 hp
- Power-to-Weight Ratio26.67 hp/t
- Fuel TypeDiesel
- Transmission TypeHydromechanical
- Suspension TypeHydropneumatic
- Max Road Speed65 km/h
- Max Off-Road Speed45 km/h
- Operational Range (Road)500 km
- Fording Depth1.2 m
◆Dimensions5MOD.5
- Length (Hull)7.48 m
- Length (Overall, Gun Forward)9.73 m
- Width3.6 m
- Height2.25 m
- Ground Clearance0.45 m
▤Electronics & Optics8MOD.8
⬢Amphibious & Special4MOD.4
- AmphibiousNo
- Snorkel / Deep Wading Depth4.5 m
- Mine Plough CapabilityNo
- Dozer Blade CapabilityNo
▲Production & Service4MOD.4
- Total Production Units484
- Years in Production11 year
- Current Service StatusActive Service
- Notable Variants Count1
03 / History
SERVICE LIFESPANStill in Service
- 1983Sale: South Korea
- 1996Production started
- 2001Production ended
- 2007Sale: Turkey (40 units)
30
years in service
5
years in production
484
units produced
2
countries operating
ⓘ The producing country still actively operates it.
04 / Operators
K1A1 tankSALES3records
| Year | Buyer | Quantity | Amount | Present Value (2025) |
|---|---|---|---|---|
| 2007 | 40 | — | — | |
| 1996 | — | — | — | |
| 1983 | — | — | — |
ⓘ "Present Value" is an estimated amount adjusted for inflation.
05 / MASS Score
TANKS RANKING Tanks · Post-Cold War
MASS RANKINGSMASS ↗
ⓘ Rankings are within theTankscategory.
📖 TERMS ON THIS PAGE17terms
Armour-piercing fin-stabilized discarding sabot: a type of kinetic energy penetrator ammunition.
A Battle Management System (BMS) is a command‑and‑control software suite that gathers, processes, and shares battlefield data to provide situational awareness and coordinate the actions of military units.
Armour made from multiple materials, such as metals and ceramics, to increase effectiveness.
Computerised Advanced: a tank fire‑control system generation that uses digital computers to calculate ballistic solutions and integrate sensor data for enhanced targeting accuracy.
Type of internal combustion engine fuel, refined from crude oil.
High-Explosive Fragmentation: ammunition that explodes on impact, releasing fragments.
High-Explosive Anti-Tank: a type of projectile that uses a shaped charge to penetrate armor.
Hydromechanical transmission combines hydraulic fluid power with mechanical gear components to transmit engine power to a tank's tracks.
Hydropneumatic suspension employs hydraulic fluid and compressed gas in sealed chambers to provide variable damping and ride height, allowing tanks to adjust ground clearance and improve cross‑country mobility.
Optical device that uses laser pulses to measure the distance to a target with high precision.
A main battle tank is a heavily armored vehicle with a large caliber gun, used for front-line combat.
Nuclear, Biological, Chemical protection for tank crews.
Enhanced low-light visibility through specialized optics or sensors.
Handheld or vehicle-mounted devices that release dense smoke to obscure vision, conceal movements, or screen friendly forces from enemy observation.
A smoothbore gun is a firearm with an unrifled barrel, allowing projectiles to travel without spin; it is commonly used in modern tank main guns for firing fin‑stabilized ammunition.
Thermal sights are infrared imaging devices mounted on a tank's gunner station that detect heat emitted by objects, enabling target identification and aiming in low‑visibility conditions.
These terms are listed automatically because they appear on this page.full encyclopedia →
