Madsen LAR
Photo: Unknown photographer · Wikimedia Commons · Public domain
REC // INTEL FEED

MadsenLAR

Battle Rifles · Denmark · 1957
ADD TO COMPARE

MadsenLAR

Madsen LAR
Madsen LAR Photo: Unknown photographer · Wikimedia Commons · Public domain
* Absolute score — assessed within category · no era adjustment
Stopping Power
63
Effective Range
71
Accuracy
69
Controllability
67
Reliability
74
Penetration
65
Ergonomics
59
Magazine Capacity
58
Versatility
61
Cost-Effectiveness
53
Origin Denmark
CategoryBattle Rifles
EraEarly Cold War
In service1957–1962
Operators24 countries
Data Quality96%
MASS(Military Archive Scoring System)
66
Battle Rifles MASS Rating
20/26
Early Cold War
49/61
All-Time
Battle Rifles · 10 axes scored
Stopping Power
63
Effective Range
71
Accuracy
69
Controllability
67
Reliability
74
Penetration
65
Ergonomics
59
Magazine Capacity
58
Versatility
61
Cost-Effectiveness
53
ⓘ Regardless of era, the same scoring system applies to all units in the battle rifles category.
01 / Overview
Madsen LAR
Country
Production
1957–1962
Operators

In 1958 the Finnish Army tested a battle rifle whose rotating bolt and long stroke gas piston were copied almost directly from the Kalashnikov, submitted not by a Warsaw Pact arms maker but by a NATO member's own defense industry. That rifle was the Madsen LAR (Light Automatic Rifle), built by Dansk Industri Syndikat (DISA) of Denmark, the company better known for the earlier Madsen light machine gun and the Madsen M-50 submachine gun.1,2 Firearms historians now describe the LAR as NATO's first AK, an infantry rifle pairing a rotating bolt gas-operated system borrowed from the Soviet design with an aluminum alloy receiver and, eventually, the 7.62x51mm NATO cartridge.2,6

Strengths
  • AK-derived long stroke piston, tolerant of fouling and rough handling
  • Lightweight aluminum alloy receiver with a steel front trunnion and chrome lined barrel
  • Drum-adjustable rear sight out to 600 m
  • Four factory stock configurations built on one common action
Weaknesses
  • Proprietary [detachable magazine](/en/glossary/detachable-magazine), incompatible with AK, FAL, or G3 pattern magazines
  • Never reached serial production, so no combat record ever tested or refined the design
  • More complex and costly to machine than the simpler FAL and G3 designs it competed against
  • Zero export sales despite roughly a decade of marketing effort

Development began in 1957 around the original 7.62x39mm M43 Soviet cartridge, aimed squarely at Finland's search for a new select-fire service rifle to replace its aging bolt-action inventory.1,5 Finland rejected the LAR in 1960 in favor of the Finnish-built Valmet Rk 62, and DISA responded by rechambering the design for 7.62x51mm NATO as the m/62, hoping to reach the broader Western export market instead.1,2 That second attempt also failed. By the time the NATO-caliber version was ready in the early 1960s, the Belgian FN FAL and the West German Heckler & Koch G3 already dominated the market DISA was chasing, and the company quietly abandoned the project in 1965 having sold nothing.2,4

The LAR belongs to the first generation of battle rifles built around NATO's newly standardized 7.62x51mm cartridge, the same category that includes the FAL, the G3, and Sweden's licensed Ak 4. Unlike those three, the LAR never won a contract of any kind. Its story survives mainly as a cautionary one about arriving late to a market that had already settled on cheaper, simpler designs.2

💰 PERFORMANCE / PRICE ASSESSMENT Methodology ↗
BATTLE RIFLES · EARLY COLD WAR
20
PERFORMANCE/PRICE
73
UNIT COST (2025 USD)
—
66
battle rifles category
ⓘ Performance/Price and MASS score are computed across all units in the battle rifles category, regardless of era.
02 / Specs & Design

Mechanically, the LAR is close to a scaled Kalashnikov built with Western materials. It uses a long stroke gas piston driving a rotating bolt, locking directly into a steel front trunnion set inside a high-tensile aluminum alloy receiver, with a chrome-lined barrel and a manual gas regulator for adjusting to ammunition and climate.2,3 The rifle fires from a closed bolt and offers both semi-automatic and full-automatic modes, cycling at roughly 550 to 600 rounds per minute with a muzzle velocity of about 800 to 808 m/s.3,4

◎General1MOD.1
  • Weight (Empty)4.3 kg

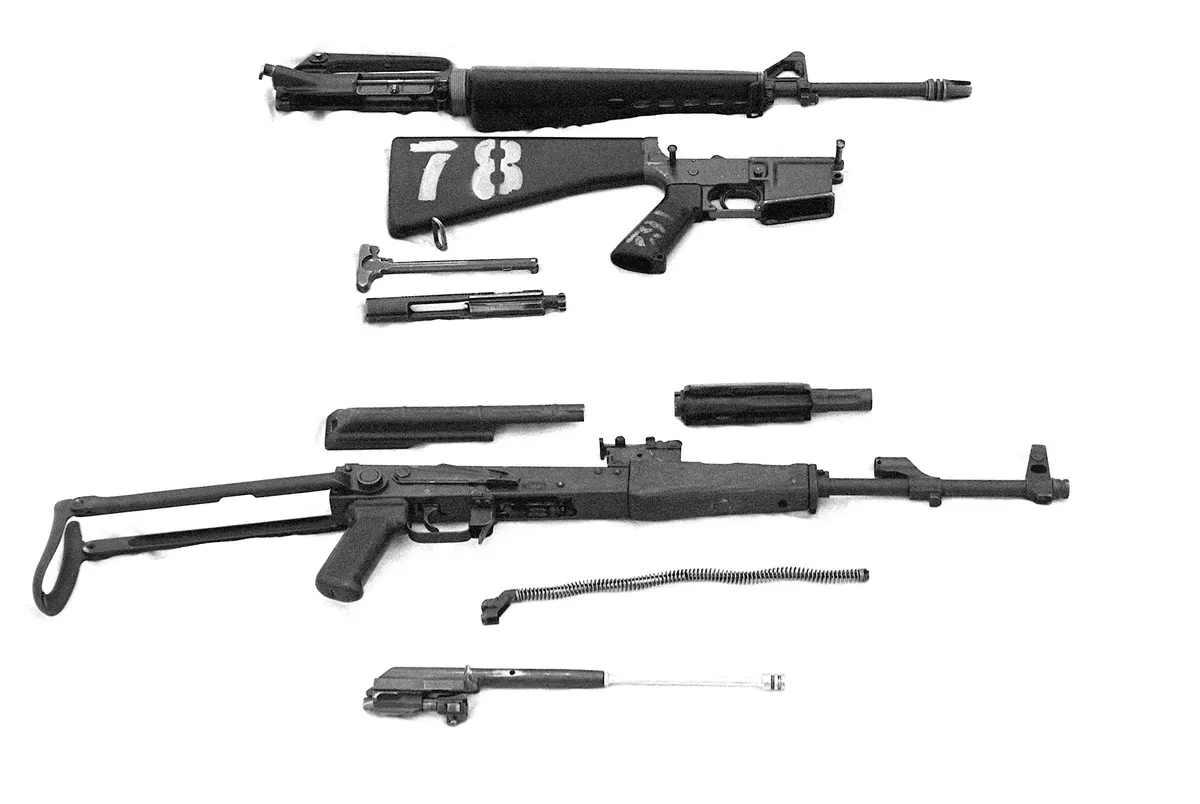

AK-pattern bolt carrier group
A Kalashnikov bolt carrier group. The Madsen LAR used the same rotating bolt and long stroke piston layout, built instead in a Western aluminum receiver 📷 Photo: Wikimedia Commons · Public domain

Published dimensions vary slightly between sources, a normal state of affairs for a rifle that never reached a standardized production line. Overall length is listed as 1,074 mm or 1,080 mm depending on the source, with a barrel of 533 to 536 mm, differences small enough to reflect measurement or prototype variation rather than a real design change.3,4 Empty weight is reported less consistently, ranging from 4.3 kg in the most commonly cited figures up to 4.7 or 4.80 kg in others, a wider spread worth flagging honestly rather than picking one number and presenting it as settled.3,5,4

◈Cartridge & Calibre2MOD.2
  • Cartridge7.62x39mm M43 (original 1957-58 Finnish-trials chambering); 7.62x51mm NATO m/62 (1962 rechambering for NATO export market)
  • Calibre7.62 mm

The production-intent 7.62mm NATO m/62 fed from a 20-round detachable magazine of DISA's own proprietary pattern, a magazine that shared no interface with AK, FAL, or G3 magazines already in NATO armories.1 The earlier 7.62x39mm prototype reportedly used a curved 30-round magazine closer to a standard AK pattern, a detail that did not carry over once DISA rechambered the rifle.5 Sights consisted of a drum-adjustable aperture rear sight graduated out to 600 m paired with a simple post front sight, a conventional arrangement for the period.3

▣Operation6MOD.6
◇Ballistics2MOD.2
  • Muzzle Velocity805 m/s
  • Sighting Range600 m
◆Barrel & Sights3MOD.3
▤Construction3MOD.3
⬢Features1MOD.1
▲Production & Cost3MOD.3
  • Production Start1957
  • Production End1965
  • Variants4
03 / History

DISA began work on the LAR in 1957, chambering the first prototypes for the Soviet 7.62x39mm M43 cartridge specifically to compete in Finland's ongoing search for a new service rifle.1,5 Finland's own arms industry was pursuing a similar path at the same moment, developing what became the Valmet Rk 62 around a licensed and locally refined Kalashnikov pattern, and the two designs were tested against each other through the late 1950s.5

Finland rejected the LAR in 1960. The stated reason was not the rifle's caliber or general layout, both of which matched the winning Rk 62 closely, but its proprietary magazine, a real logistical disadvantage against a domestically produced rival that used a standard AK-pattern magazine and was cheaper to manufacture in Finland besides.1,5 Losing to a domestic competitor on its home turf, rather than to a larger NATO power's rifle, underlines how narrow the LAR's failure was at first, a single procurement decision rather than an obviously flawed design.

DISA did not give up. The company rechambered the rifle for 7.62x51mm NATO around 1962, designating it the m/62 and pitching it at the wider Western export and NATO market the original Finland-focused design had never targeted.1,2 By then the timing had turned against DISA in a different way. The FN FAL and the Heckler & Koch G3 were already established across NATO and allied militaries, cheaper to mass-produce than the LAR's more tightly machined aluminum receiver and proprietary magazine, and backed by production and logistics networks DISA had no way to match with a rifle nobody had yet ordered.2,4

FN FAL battle rifle with wood furniture and 20-round magazine
An FN FAL 50.00, the standard full-length wood-stock configuration adopted by Belgium and dozens of other militaries 📷 Photo: Atirador · Wikimedia Commons · CC BY-SA 3.0

No country tested the m/62 and placed an order. Forgotten Weapons summarizes the outcome bluntly, noting there were no takers and the rifle was never put into serial production at all, only prototypes were ever built.2 Military Factory's own listing records the LAR's adoption status simply as not adopted, with Denmark and Finland recorded only as the countries that evaluated it, not as operators.4 DISA abandoned marketing the LAR in 1965.2

The LAR's failure, layered on top of the earlier commercial failure of DISA's bolt-action Madsen M/47, is widely credited as a driving reason DISA left small arms manufacturing altogether.2 The company had already begun diversifying into civilian industrial goods through the 1940s and 1950s, and by the early 1960s it was investing instead in the DISAMATIC vertical molding system for metal-casting foundries, a technology first patented in 1960 and commercially launched in 1964.7 DISA still exists today, now as a foundry-equipment maker within the Norican Group, known worldwide for casting machinery rather than for the rifle it once tried to sell to NATO.7

Denmark's own military never adopted the LAR either, despite it being a domestic design. Danish forces kept the wartime-pattern M1 Garand as their standard rifle into the 1970s, and when the country finally moved on, it leased used Heckler & Koch G3 rifles from West Germany's Bundeswehr as the Gevær M/75 rather than fielding a Danish-made replacement.8 The rifle DISA had originally hoped to displace ended up outliving DISA's own attempt to replace it, in service with the country that built the LAR in the first place.

04 / Variants

Wikipedia's account of the LAR describes four factory stock configurations built on the same action, a fixed wood stock, a fixed steel tube stock, a side-folding stock, and an underfolding stock similar in concept to the AKMS.1 Modern Firearms describes only two, a fixed wood stock and a side-folding tube stock, in less detail.3 With no serial production and no surviving factory catalog to check against, the four-configuration account should be treated as plausible but resting on a single detailed source rather than independently confirmed.

The more consequential variant split is chronological rather than cosmetic. The original 1957 to 1958 prototype fired the Soviet 7.62x39mm M43 cartridge from a curved magazine closer to standard AK capacity, built specifically for the Finnish trials.1,5 The later m/62, dated to around 1962, was rechambered for 7.62x51mm NATO and fed from DISA's own 20-round proprietary magazine, the version DISA marketed to the wider NATO and export market after losing Finland's contract.1,4 No production numbers exist for either version. Every source consulted agrees the LAR never moved past hand-built prototypes, so there is no meaningful serial number range or factory output figure to report.2,4

05 / Operators

No country adopted the Madsen LAR. Finland tested it as a candidate service rifle from roughly 1958 to 1960 before selecting the domestically produced Valmet Rk 62 instead, making Finland the only nation confirmed to have run the rifle through formal trials.1,5 DISA reportedly showed the later 7.62mm NATO m/62 to other Western defense buyers through the early to mid-1960s, but no source consulted for this profile documents a second country running the design through an equivalent trial, let alone placing an order.2,4

Denmark itself never fielded the LAR despite the rifle being a Danish product from a Danish company. As detailed above, Danish forces retained the M1 Garand and later leased secondhand G3 rifles from West Germany rather than adopting anything from their own small arms industry, a detail that underscores how completely the LAR failed to find any customer, foreign or domestic.8

⚡ FIRSTS
1958
First Western rifle trial for an AK-pattern designThe Madsen LAR entered Finland's service rifle trials chambered in 7.62x39mm M43, years before Western militaries would more broadly explore AK-influenced rifle designs.[^1][^2]
06 / MASS Score

The Madsen LAR and the FN FAL solved the same NATO cartridge problem through opposite approaches to manufacturing. The LAR carried over a Kalashnikov-style rotating bolt and long stroke piston into a precisely machined aluminum receiver, while the FAL used a simpler short-stroke gas piston and tilting breechblock that FN and roughly a dozen licensees could produce at far greater volume and lower cost.2,6 That production-cost gap, more than any performance difference, is what left the LAR with no realistic opening once the FAL had already captured most of NATO's early 7.62mm rifle contracts.

The Heckler & Koch G3 tells a similar story from a different mechanical direction. Its roller-delayed blowback system required no separate gas system at all, cutting parts count and machining time compared to the LAR's more complex gas-piston arrangement, while offering comparable reliability once West Germany and its licensees had it in full production.4,6 Neither the FAL nor the G3 offered a dramatic performance advantage over the LAR on paper. Both offered something the LAR never could, an already-running production line and a buyer willing to sign a contract.

ParameterMadsen LAR (m/62)FN FALHeckler & Koch G3
Operating systemGas-operated, rotating bolt, long stroke piston2Short-stroke gas piston, tilting breechblock6Roller-delayed blowback6
Cartridge7.62x51mm NATO (originally 7.62x39mm M43)17.62x51mm NATO7.62x51mm NATO
Empty weightApproximately 4.3 to 4.8 kg (sources vary)3,4,54.25 kgApproximately 4.4 kg
Magazine20-round proprietary detachable box120 or 30-round detachable box20-round detachable box
Countries adopting02,4Approximately 90Approximately 50

Had Finland accepted a foreign design over its own emerging Valmet industry, or had DISA reached the NATO market even a few years earlier, the LAR might have carved out a niche the way the G3 eventually did against the FAL. Instead it stands as the clearest Western example of an AK-pattern rifle that lost not on performance but on timing and cost, arriving after two cheaper rivals had already answered the same question.

07 / Frequently Asked Questions

What are the Madsen LAR's specifications? The 7.62mm NATO m/62 version measures roughly 1,074 to 1,080 mm overall with a 533 to 536 mm barrel, weighs an estimated 4.3 to 4.8 kg empty depending on the source, and feeds from a 20-round proprietary detachable magazine, cycling at 550 to 600 rounds per minute.3,4,5

How does the Madsen LAR work? It uses a gas-operated, long stroke piston driving a rotating bolt, the same basic mechanism as the Kalashnikov, built into a high-tensile aluminum alloy receiver with a steel front trunnion and a chrome-lined barrel, firing from a closed bolt in semi-automatic or full-automatic mode.2,3

Did any country adopt the Madsen LAR? No. Finland tested it from 1958 to 1960 and rejected it for the domestically produced Valmet Rk 62, and no other country is documented placing an order for the later 7.62mm NATO version. The rifle never entered serial production.2,4

How does the Madsen LAR compare to the FN FAL and Heckler & Koch G3? All three are first-generation NATO 7.62mm battle rifles from the same era, but the FAL and G3 were cheaper and simpler to mass-produce than the LAR's more tightly machined aluminum receiver and proprietary magazine, and both had already captured NATO's early rifle contracts by the time the LAR's NATO-caliber version was ready.2,4,6

What is the Madsen LAR's unit cost? No unit cost or contract price exists for the LAR. It never reached a production contract of any kind, so no government ever paid a per-unit price for it.

📖 TERMS ON THIS PAGE6terms
A firearm feed system where ammunition is stored in a separate container (magazine) that can be removed and replaced, enabling rapid reloading.
A firearm stock that can be folded or collapsed to reduce overall length for storage or transport.
Firearm action type where expanding gas from a fired cartridge cycles the mechanism, typically via a piston or direct impingement.
Uses high-pressure gas to cycle the action, rather than recoil energy.
Adjustable metal aiming devices on firearms, consisting of a front post and rear notch, used without magnification.
Select fire is a fire selector mechanism on a firearm that lets the shooter choose the firing mode, such as semi‑automatic, burst, or fully automatic.
These terms are listed automatically because they appear on this page.full encyclopedia →
📚 Sources
  1. "Madsen LAR", Wikipedia — en.wikipedia.org ↩
  2. "Madsen LAR: An AK for NATO!", Forgotten Weapons — forgottenweapons.com ↩
  3. "Madsen light automatic rifle LAR M/62", Modern Firearms — modernfirearms.net ↩
  4. "Madsen m/62 LAR Battle Rifle Prototype", Military Factory — militaryfactory.com ↩
  5. "Madsen Light Automatic Rifle", Historical Firearms — historicalfirearms.info ↩
  6. "NATO's Forgotten First AK: The Madsen LAR", The Firearm Blog — thefirearmblog.com ↩
  7. "DISA (company)", Wikipedia — en.wikipedia.org) ↩
  8. "Denmark's m/75: A Lease-to-Own Rifle", Forgotten Weapons — forgottenweapons.com ↩
